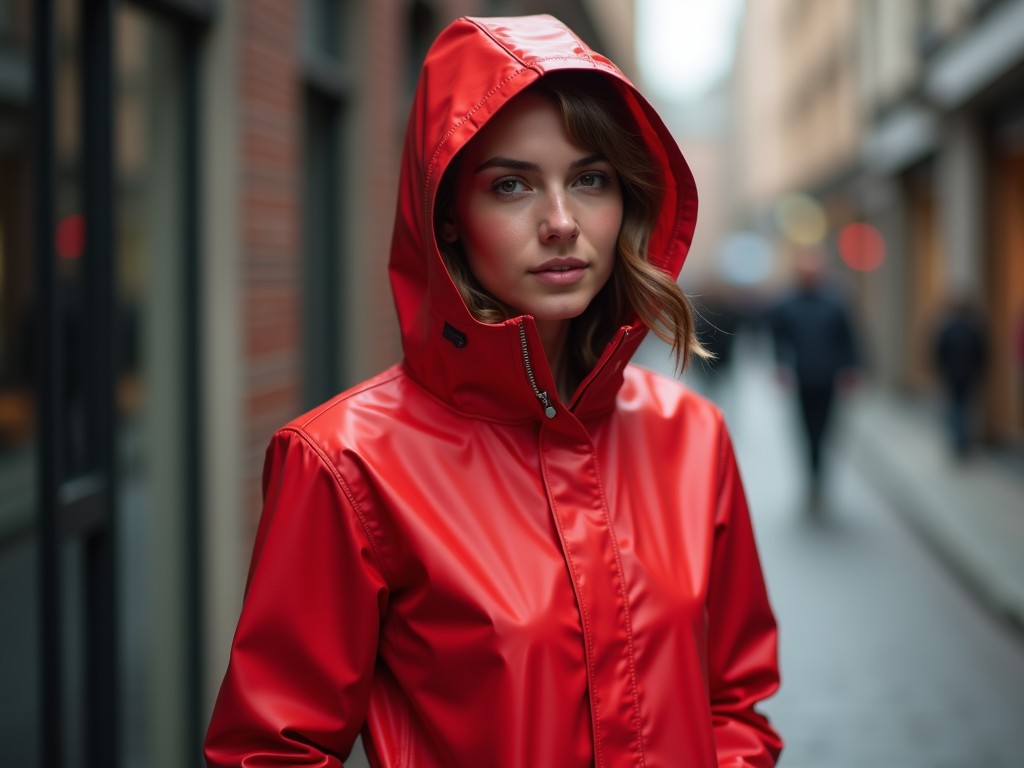

Women's Red Raincoat with Hood

A women's red raincoat with hood is engineered for reliable protection against precipitation while maintaining mobility and visibility in variable weather conditions. The design prioritizes waterproof integrity through sealed seams and a continuous hood integration, eliminating common failure points at the neck and head interface. This garment serves professionals requiring consistent performance in outdoor operational environments where exposure to rain, wind, and reduced visibility presents operational risks.

Material Composition and Waterproof Performance

The outer shell utilizes a 100% polyester filament yarn with a polyurethane (PU) coating applied at 1.8 mil thickness, achieving a hydrostatic head rating of 5,000 mm as measured by ISO 811 standard. This specification ensures resistance to moderate rainfall and wind-driven moisture without delamination under repeated flexing. The coating is applied via a solvent-free dispersion process to maintain flexibility at temperatures as low as -10°C, preventing brittleness during cold-weather use.

Seam sealing employs thermoplastic polyurethane tape bonded via heat activation at 140°C, creating a continuous barrier that matches the substrate’s elongation properties. Unlike stitched-and-taped alternatives, this method prevents seam leakage under dynamic stress, such as shoulder movement or hood adjustment. The tape width of 20mm provides adequate coverage while minimizing added stiffness in high-motion zones like the underarms and sleeve caps.

Hood Design and Functional Integration

The hood is constructed as a three-panel piece cut from the same coated polyester shell, ensuring material consistency and eliminating differential shrinkage. It features a semi-rigid visor formed by heat-molding the PU-coated fabric over a 2mm polyethylene form strip, maintaining shape without obstructing peripheral vision. The visor extends 50mm beyond the brow line to deflect rain away from the face while allowing unimpeded upward gaze.

Adjustment occurs via two symmetric drawcords routed through internal cord locks positioned at the temples, allowing vertical and circumferential tightening without external snag points. The cord locks use nylon 6/6 with a stainless steel spring mechanism rated for 5,000 cycles. When fully tightened, the hood opening reduces to 28cm circumference, accommodating headwear such as hard hats or beanies while maintaining a seal against wind-driven rain.

Closure System and Environmental Sealing

The front closure employs a coil-type nylon zipper with a polyurethane storm flap overlapping by 35mm on each side. The zipper teeth are molded from acetal copolymer, selected for resistance to UV degradation and salt spray corrosion. A hydrophobic coating is applied to the zipper tape to reduce water retention and prevent ice buildup in sub-zero conditions.

The storm flap secures via two rows of 10mm diameter snap fasteners spaced 60mm apart, manufactured from brass with a nickel-free plating to prevent allergic reactions. Each snap provides 8N of retention force, sufficient to resist flap displacement under 25km/h wind loads. The flap’s inner edge features a 5mm wide silicone bead that compresses against the zipper teeth to block moisture migration along the closure line.

Colorfastness and Visibility Characteristics

The red pigment is formulated as a diarylide-based organic dye dispersed in the PU coating matrix, achieving a CIE L*a*b* value of 53, 68, 42 under D65 illumination. This specific hue provides high contrast against common urban and natural backgrounds (gray infrastructure, green foliage, gray sky) while avoiding the fluorescence degradation seen in some high-visibility alternatives. Accelerated UV exposure testing (ISO 4892-2) shows ΔE<5 after 200 hours, indicating minimal perceptible fading.

Reflectivity is achieved through 50mm wide retroreflective tape applied in a horizontal band at the waist level and vertical strips on the sleeves, meeting EN ISO 20471 Class 2 requirements for background material. The tape uses glass bead technology with a refractive index of 1.9, returning >80% of incident light at 0° observation angle. Placement avoids high-abrasion zones like the elbows and shoulders to maintain long-term reflectivity.

Size Range and Fit Engineering

The garment follows a graded sizing system based on ISO 8559-1 anthropometric data for the 5th to 95th percentile female torso, with chest circumference ranging from 82cm (XS) to 112cm (XXL) in 4cm increments. Sleeve length is derived from shoulder-to-wrist measurement, increasing 1.6cm per size increment to maintain proportional coverage. The back length measures 78cm at size M, graded ±1.2cm per size to ensure adequate hip coverage without excessive rear bulk.

Ease allowances are strategically distributed: 8cm at the chest for layering over insulating garments, 6cm at the hips to accommodate movement, and 4cm at the waist to prevent binding during torso rotation. The shoulder slope follows a 12-degree drop from cervical point to acromion, matching average female posture to reduce strain during extended wear. Armhole depth is set at 22cm for size M, providing clearance for dynamic arm motion without exposing the torso.

Manufacturing Considerations and Quality Control

Cutting is performed using computer-controlled rotary blades with 0.1mm precision to maintain pattern integrity, especially critical for the hood’s three-panel alignment. Seam stitching uses 100% polyester core-spun thread with a tensile strength of 4.5N/tex, sewn at 8 stitches per cm to balance durability and flexibility. Stitch density is reduced to 6 stitches per cm in low-stress areas like the hem to minimize puckering on the coated substrate.

Final inspection includes hydrostatic retesting of sealed seams at 3,000 mm pressure, visual checks for coating defects under 500 lux illumination, and dimensional verification against a master pattern using optical scanning. Each unit undergoes a 10-minute tumble test in a rotating drum with abrasive strips to simulate wear, followed by a recheck of seam integrity and closure function. Units failing any criterion are segregated for root cause analysis before rework or scrapping.

Applications in Operational Environments

This raincoat is commonly specified for field technicians in utility maintenance who require protection during overhead line inspections in wet conditions, where visibility and freedom of movement are critical for safety. The sealed hood design prevents water runoff from obstructing vision when looking upward, a frequent failure point in separate hood designs. Municipal workers in waste management and street cleaning benefit from the colorfast red hue, which enhances conspicuity in low-light, high-traffic zones without relying solely on retroreflective elements that may become obscured by dirt.

In logistics and warehouse operations, the garment’s resistance to oil-based splashes and mild chemical exposure makes it suitable for dock workers handling goods in open-sided facilities. The PU coating resists penetration by common aliphatic hydrocarbons for up to 30 minutes of contact, allowing time for cleanup before saturation. The absence of absorbent liners prevents retention of contaminants, simplifying decontamination procedures between shifts.

Comparison with Alternative Rain Protection Systems

Compared to PVC-coated alternatives, this design maintains superior flexibility in cold environments due to the polyurethane’s lower glass transition temperature, reducing the risk of cracking during flexing. The fixed hood eliminates the deployment delay and misalignment risk associated with detachable systems, critical in rapidly changing weather. While softshell jackets offer higher hydrostatic resistance, they lack the integrated visibility features and seamless hood seal required for consistent performance in prolonged precipitation.

Customization Options

The base red shade (Pantone 18-1663 TCX) can be adjusted within ±5 ΔE units to match corporate color standards, with pigment dispersion reformulated to maintain UV stability. Hood depth can be increased by 15mm to accommodate larger headgear, achieved by altering the panel curve radius without changing the overall pattern yield. Sleeve length may be extended in 10mm increments for specialized reach requirements, with corresponding adjustments to the cuff taper to preserve sealing effectiveness.

Retroreflective tape width and placement can be modified to meet specific regional safety standards, such as increasing vertical sleeve coverage to 100mm for ANSI/ISEA 107 compliance. Storm flap overlap can be reduced to 25mm for applications where bulk minimization is prioritized, though this requires validation under simulated wind-driven rain testing. Interior pockets can be added using the same coated polyester, with weld-sealed seams to maintain waterproof integrity at the attachment points.

Packaging and Shipping Considerations

Each unit is folded along standardized crease lines to minimize volume, then placed in a 50-micron polyethylene bag with a desiccant packet to prevent moisture accumulation during transit. The bag is sealed via heat seal to maintain humidity control. Carton dimensions are optimized for palletization: 30 units per carton (50x40x30cm), yielding a gross weight of approximately 18kg. Cartons are sealed with pressure-sensitive tape rated for 72-hour adhesion under 40°C/85% RH conditions.

For export shipments, cartons are stacked on ISPM 15-compliant wooden pallets with corner protectors and stretch-wrapped using 80-gauge film at 50% pre-stretch. Each pallet receives a UV-resistant label indicating handling instructions and material composition for customs clearance. Lead time from order confirmation to shipment readiness is typically 18-22 days for standard configurations, with variations communicated upon receipt of technical specifications for customized orders.

Request Technical Specification Sheet
