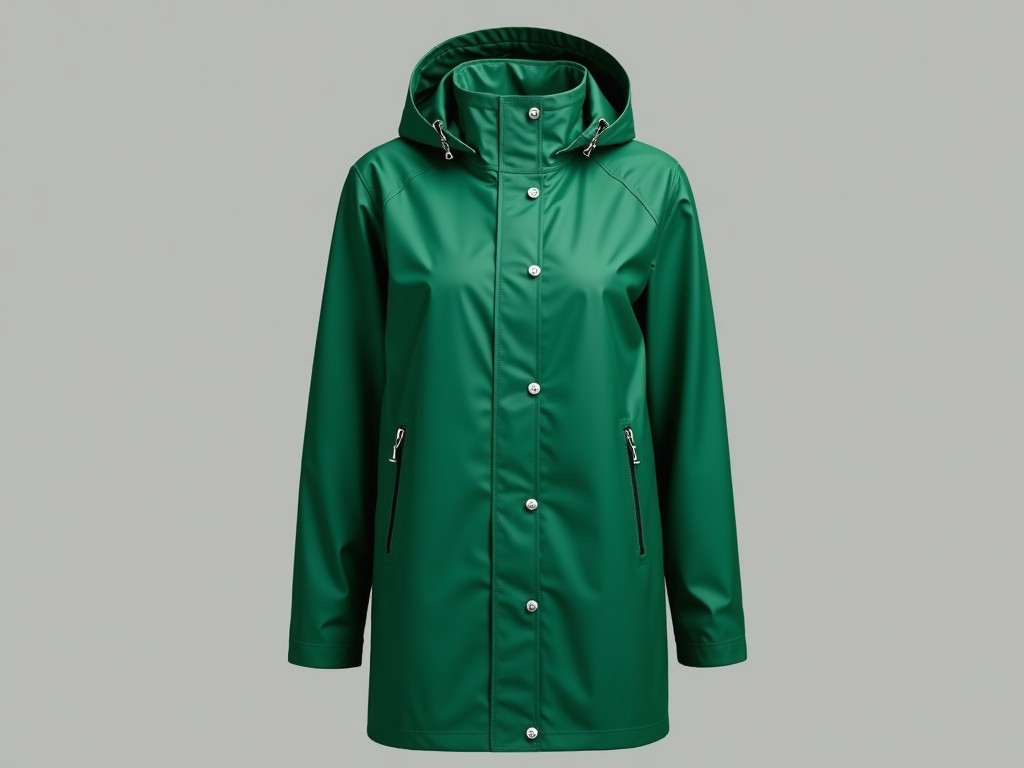

Factory Direct Women's Green Rain Coat

This rain coat is engineered for outdoor industrial environments where consistent water protection and mobility are required. It combines a three-layer laminated fabric system with sealed seams to achieve a minimum hydrostatic head rating of 10,000 mm while maintaining breathability through a microporous membrane. The design prioritizes functional durability over aesthetic variation, targeting users who need reliable performance in prolonged wet conditions.

Material Construction and Performance

The outer shell uses a 150D polyester ripstop fabric with a DWR (durable water repellent) finish rated to withstand 20 wash cycles before reapplication is recommended. Beneath this, a polyurethane laminate provides the primary waterproof barrier, while an inner tricot lining manages moisture vapor transfer. The combined system achieves a moisture vapor transmission rate (MVTR) of 8,000 g/m²/24h under standard test conditions (JIS L 1099 B1), reducing interior condensation during moderate activity.

Seams are sealed using 20mm wide polyurethane tape applied via heat bonding, creating a continuous barrier that prevents leakage at stitch points. Zipper flaps and storm cuffs incorporate overlapping welds rather than traditional stitching to eliminate potential ingress points. The hood features a laminated brim and adjustable drawcords with cord locks designed to maintain seal integrity even when adjusted for head movement.

Design Specifications for Industrial Use

The coat follows a relaxed fit pattern with articulated elbows and gusseted underarms to support a full range of motion without binding. Sleeve length is sized to accommodate layering over insulated liners or safety vests, with adjustable hook-and-loop cuffs allowing users to tighten the opening over gloves. The front closure uses a YKK Vislon zipper with a storm flap secured by magnetic snaps, reducing reliance on Velcro that can degrade in dirty environments.

Two chest pockets and two hand-warmer pockets are positioned to remain accessible when wearing a harness or belt. Pocket zippers are coated to resist corrosion and feature drainage grommets at the base to prevent water accumulation. Reflective trim is applied in 50mm wide bands on the sleeves and back, meeting EN ISO 20471 Class 2 requirements for visibility in low-light conditions when combined with compatible safety garments.

Size Range and Customization Options

Standard production runs include sizes XS through 3XL, with grading based on ISO 8559-1 anthropometric data for female industrial workers. Custom sizing is available for orders exceeding 50 units, allowing adjustments to torso length, sleeve length, and chest circumference in 2cm increments. Color matching to specific RAL or Pantone references is possible for the outer fabric, though the green shade (Pantone 7730 C) is stocked as a standard option.

Additional customization includes logo application via heat transfer or embroidery on the chest or sleeve, optional removal of reflective tape for non-high-visibility applications, and integration of internal attachment points for radios or tools. All modifications are subject to factory validation to ensure they do not compromise seam integrity or waterproof performance.

Quality Control and Testing

Each batch undergoes hydrostatic head testing on three randomly selected units per 1,000 produced, with acceptance criteria set at >9,500 mm to account for minor variability. Seam strength is measured using a grab test per ASTM D5034, requiring a minimum of 25 N/mm in both warp and weft directions. Colorfastness to light and washing is evaluated per AATCC standards, with ratings of 4 or higher required for approval.

Finished goods are inspected for stitch density (minimum 8 stitches/cm), thread tension uniformity, and proper alignment of reflective elements. Functional testing includes a 30-minute rain chamber simulation at 100 mm/hr intensity, followed by inspection for internal moisture. Any unit showing leakage or seam failure is rejected and traced to the specific operator or machine for corrective action.

Applications in Industrial Environments

This rain coat is commonly used in utility maintenance, agricultural operations, and outdoor logistics where workers face intermittent to prolonged exposure to rain. The breathability rating ensures comfort during physical tasks such as equipment inspection or material handling, while the sealed seams prevent saturation during extended periods in heavy rain. Unlike disposable ponchos, the laminated construction resists tearing from brush or equipment contact, extending service life in rugged conditions.

In colder climates, the coat functions effectively as an outer shell over fleece or insulated liners, with the adjustable cuffs and hem preventing cold air infiltration. The three-layer system avoids the stiffness associated with thicker PVC coatings, allowing workers to maintain dexterity when handling tools or fasteners. For electrical or utility workers, the non-conductive materials and absence of metal components in the primary closure reduce incidental contact risks.

Packaging and Lead Time

Each coat is folded and placed in a polyethylene bag with a desiccant packet to prevent moisture retention during storage. Standard packaging includes 10 units per carton, with carton dimensions optimized for palletization (600mm x 400mm x 300mm). Bulk orders are stacked and secured with stretch film, and corner protectors are applied to prevent damage during transit. Shipping marks include PO number, size breakdown, and care instructions in English and Spanish.

Standard production lead time is 25–30 days from receipt of approved artwork and payment, assuming fabric and trim availability. Custom colors or logo applications may extend this timeline by 7–10 days due to additional sourcing or setup requirements. Expedited options are available upon request, subject to factory capacity and material readiness.

For technical inquiries, customization requests, or to request a sample unit for evaluation, contact our industrial sales team.
