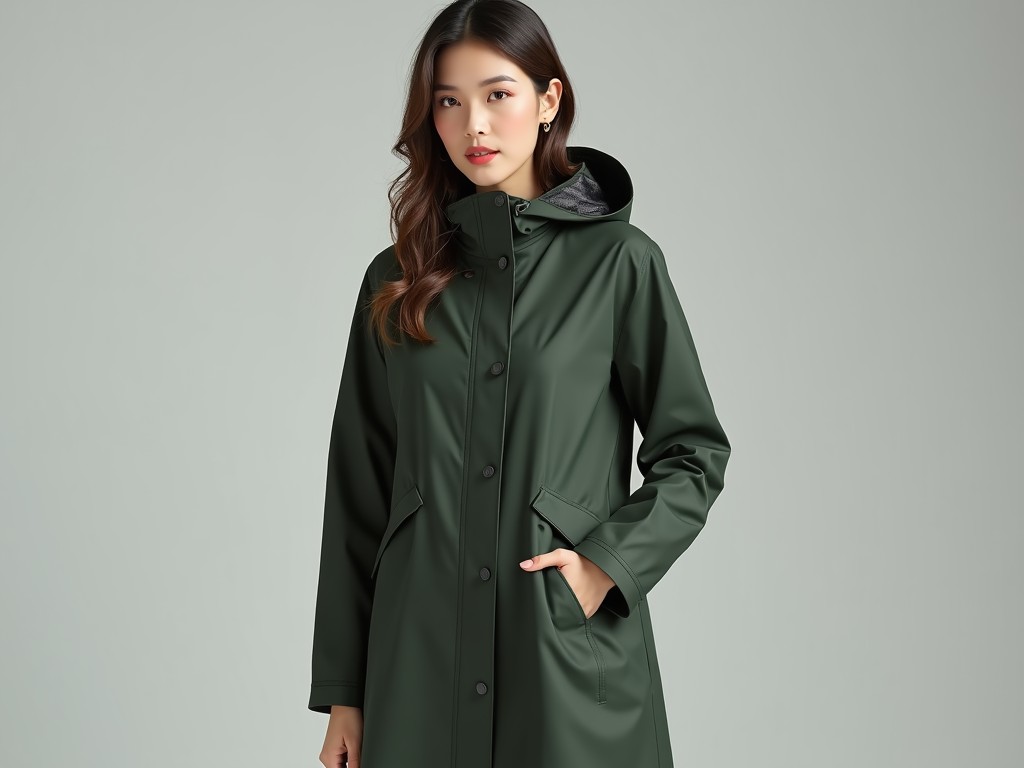

This raincoat is engineered for wet-weather protection in variable climates, combining a waterproof outer shell with a detachable insulated lining. The design prioritizes adaptability, allowing users to adjust thermal performance based on ambient temperature and activity level without replacing the garment.

Constructed from a three-layer laminated polyester fabric with a polyurethane (PU) coating, the outer shell achieves a hydrostatic head rating of 5,000mm, resisting moderate to heavy rainfall while maintaining breathability through microporous membrane technology. Seams are fully taped with waterproof adhesive tape to prevent leakage at stitch points.

The removable lining consists of a 120g/m² polyester fleece bonded to a thin polyurethane layer, providing warmth equivalent to 6–8°C of thermal insulation when worn. Attachment is via hidden YKK-style nylon zippers at the front placket, cuffs, and hem, enabling quick detachment in under 15 seconds without tools.

The outer shell uses 100% polyester filament yarn with a 240T thread count, laminated to a 1.2mil PU film. This construction delivers a tensile strength of 45N warp and 38N weft (ASTM D5034), tear resistance of 8N warp and 6N weft (ASTM D2261), and abrasion resistance exceeding 20,000 cycles (Martindale test).

Breathability is rated at 3,000g/m²/24hr (JIS L1099 B1 method), allowing moisture vapor transmission to reduce internal condensation during prolonged wear. The fabric retains flexibility down to -20°C, preventing brittleness in cold storage or winter use.

The lining fleece is made from 100% recycled polyester fibers, treated with an antimicrobial finish (zinc pyrithione-based) to inhibit odor-causing bacteria. The bonding layer between fleece and PU film uses a hot-melt adhesive rated for 40 wash cycles without delamination.

The hood is integrated into the collar with a three-point adjustment system: vertical drawcord at the rear, lateral toggles at the temples, and a stiffened brim with 3mm polyethylene insert to maintain shape in wind. When stowed, the hood folds into a zippered collar pocket measuring 18cm x 12cm.

Cuffs feature dual-adjustment: internal elastic gauntlet with external hook-and-loop strap, allowing sealing over gloves or bare wrists. The hem includes a hidden drawcord with cordlocks at both side seams, adjustable without removing the coat.

Pockets are designed for utility: two hand-warmer pockets with fleece lining and water-resistant zippers, plus an internal chest pocket with media port access. All zippers are coated nylon with storm flaps to prevent water ingress.

This raincoat suits environments where personnel transition between outdoor exposure and indoor climate-controlled zones, such as logistics hubs, outdoor maintenance crews, agricultural inspection teams, and event staff. The removable lining eliminates the need to carry multiple garments for shifting conditions.

In logistics, workers loading/unloading goods in open bays benefit from rapid thermal adjustment when moving between refrigerated storage (4°C) and ambient docks (25°C). The coat’s breathability prevents overheating during physical exertion while maintaining dryness during rain exposure.

For agricultural use, the antimicrobial lining reduces odor buildup during extended wear in livestock handling or greenhouse work. The abrasion-resistant shell withstands contact with rough surfaces like wooden pallets, metal frames, or vegetation.

Color matching is available via Pantone reference or physical sample, with minimum order quantities starting at 300 units per colorway. Reflective trim options include 50mm wide silver or high-visibility yellow tape compliant with EN ISO 20471 Class 2, positionable on sleeves, back, and hem.

Lining weight can be adjusted between 80g/m² (lightweight) and 200g/m² (heavyweight) to suit regional climate demands. Alternative lining materials such as down alternative (150g/m² polyester fill) or merino wool blend are available upon request.

Branding options include embroidery, silicone patch, or heat-transfer logo application on the left chest, back yoke, or sleeve. All customization requires artwork submission in vector format (AI, EPS, or PDF) with 300dpi resolution.

Each batch undergoes hydrostatic head testing on three random samples per 1,000 units using a Suter hydrostatic tester (AATCC 127). Seam integrity is verified via spray test (AATCC 22) with acceptance criteria of zero leakage points after 5 minutes of exposure.

Colorfastness to washing, light, and perspiration is assessed per ISO 105 standards, with minimum ratings of 4/5 for washing and light, and 3/5 for perspiration. Dimensional stability after five wash cycles is limited to ±3% length and width change.

Functional testing includes zipper endurance (500 cycles, SBS standard), drawcord strength (15N minimum pull-off), and reflective tape adhesion (500g/cm² minimum peel strength). Final inspection includes 100% visual check for stitching defects, loose threads, and staining.

For technical inquiries, sample requests, or quotation details, contact our industrial sales team. Provide specifications including required quantity, delivery timeline, and any customization needs such as color, branding, or lining adjustments.

Submit an inquiry for pricing and lead times
