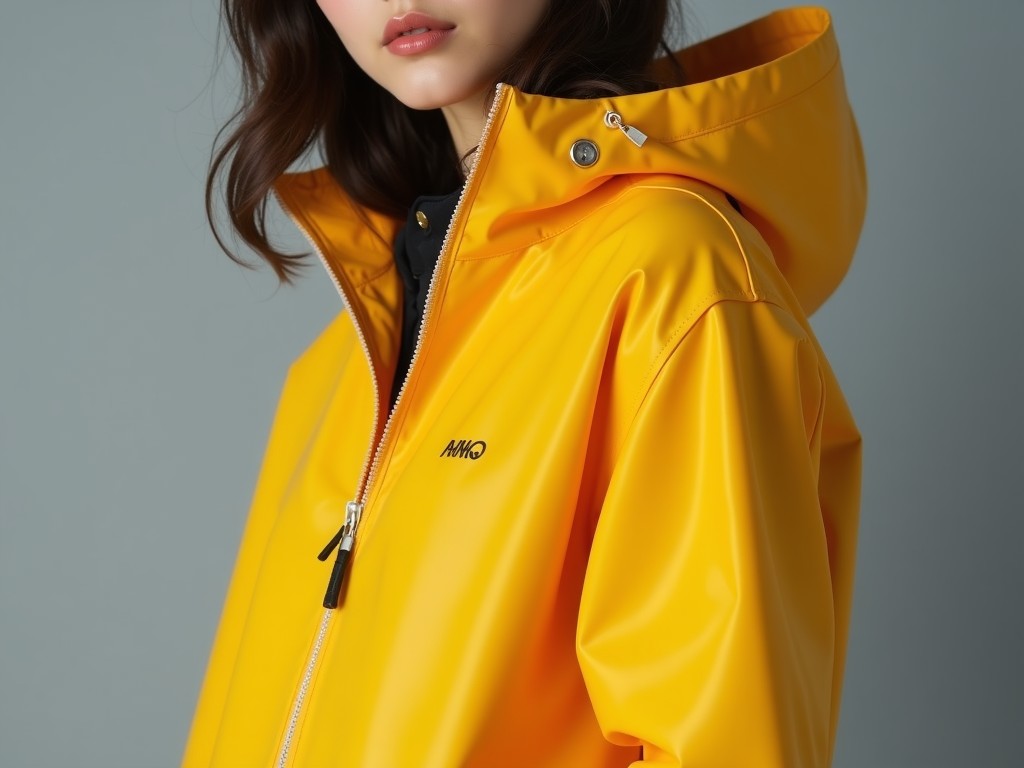

China Classic Yellow Rain Jacket Women's
The China classic yellow rain jacket for women is engineered for consistent performance in wet industrial and outdoor environments where visibility and moisture protection are critical. Constructed from a 0.18mm PVC-coated polyester base fabric, the jacket achieves a hydrostatic head rating of 8,000mm, ensuring resistance to moderate rainfall and splashing while maintaining flexibility at temperatures down to -10°C. Seams are thermally welded using 12mm-wide tape with a peel strength of 8.5N/cm, eliminating needle holes that could compromise waterproof integrity.
The high-visibility yellow pigment (Pantone 803C) is compounded directly into the PVC coating during calendering, providing UV-stable color retention that meets EN ISO 20471 Class 2 requirements for daytime conspicuity. Reflective tape strips (50mm width) are applied to the shoulders, sleeves, and hem using pressure-sensitive adhesive with a peel adhesion of 4.2N/cm, maintaining reflectivity after 25 wash cycles per ISO 6330. The jacket features a storm flap over the front zipper, sealed with snap buttons made of acetal resin to prevent corrosion in humid conditions.
Technical Specifications
| Parameter | Value | Test Standard |
|---|---|---|
| Fabric Weight | 180 g/m² | ISO 3801 |
| Hydrostatic Head | 8,000 mm | ISO 811 |
| Tear Strength (Warp/Weft) | 25 N / 22 N | ISO 9073-4 |
| Reflective Tape Coefficient | ≥100 cd/lx/m² | EN ISO 20471 |
| Operating Temperature | -10°C to +40°C | Internal Thermal Cycling |
Design and Functional Features
The jacket employs a raglan sleeve cut to improve shoulder mobility during overhead work, reducing strain when reaching or lifting. A two-way nylon coil zipper (size #5) with storm flap allows ventilation control while maintaining weather sealing; the flap overlaps by 25mm and is secured with five snap fasteners spaced 60mm apart. Adjustable hook-and-loop cuffs provide a seal range of 40mm to accommodate gloves or bare wrists, while the hem features a 25mm drawcord with barrel locks for perimeter tightening.
Two lower patch pockets are positioned at 110mm above the hem, each with a 100mm vertical opening and flap closure secured by touch tape. The pockets are bagged with 100gsm nylon mesh to prevent water retention and allow drainage. A detachable hood, stored in a collar zip pocket when not in use, features a stiffened peak and adjustable rear drawcord to maintain visibility in wind. All hardware components are selected for resistance to salt spray and industrial pollutants, with zinc alloy zippers treated with a passivation coating.
Ventilation is managed through two 40mm eyelets under each arm, fitted with brass grommets to prevent tearing. These allow passive air exchange without compromising waterproofing, reducing internal condensation during moderate activity. The interior lining is a 65gsm polyester mesh designed to wick moisture away from the skin and reduce cling; it is sewn with a 3mm overlock stitch to prevent fraying at stress points. Size grading follows ISO 8559-1, with consistent ease allowances across the size range (S-3XL) to ensure proper layering over workwear.
Applications in Industrial and Outdoor Settings
This rain jacket is commonly specified for utility workers in municipal water departments who require reliable protection during pipe inspection and valve maintenance in rainy conditions. The high-visibility yellow ensures compliance with temporary traffic control zone regulations when working near roadways, while the PVC coating resists degradation from exposure to diluted detergents and alkaline cleaning agents used in equipment washdowns.
In agricultural environments, the jacket protects workers during pesticide mixing and equipment cleaning where liquid splash and occasional spray are expected. The chemical resistance of the PVC coating provides a barrier against common water-based formulations, though it is not rated for prolonged exposure to organic solvents. The reflective elements enhance visibility during dawn or dusk operations in fields or barns where lighting is low.
For event staff and outdoor venue personnel, the jacket offers a balance of weather protection and professional appearance during festivals, markets, or stadium operations. The lightweight construction (approximately 280g in size M) allows for easy storage in response to rapidly changing weather, and the colorfast yellow maintains brand consistency when used as part of a uniform program. The design avoids bulky insulation, making it suitable for layering over fleece or softshell garments in variable climates.
Quality Control and Manufacturing Considerations
Each batch of PVC-coated fabric undergoes incoming inspection for coating adhesion (minimum 4.5N/cm peel strength) and thickness uniformity using a beta gauge, with acceptance criteria of ±0.02mm tolerance. Seam weld integrity is verified on every 50th jacket using a tensile tester, ensuring peel strength remains above 7.5N/cm after thermal bonding. Reflective tape application is checked for alignment and adhesion using a 100mm roller test, with rework triggered if lateral shift exceeds 3mm.
Finished jackets are subjected to a spray test per ISO 811:1981 (Method A) at 60L/m² for 5 minutes, with no more than 3g of water penetration allowed in the interior lining. Dimensional stability is assessed after 5 wash cycles at 40°C, with maximum shrinkage limited to 2% in length and 1.5% in width. Colorfastness to light is evaluated using a Xenon arc lamp (ISO 105-B02), with a minimum rating of 4 on the blue scale required for approval.
Packaging involves folding each jacket to a uniform 300mm × 200mm × 50mm bundle, placed in a 70gsm polyethylene bag with ventilation holes to prevent moisture entrapment during transit. Cartons are configured for 24 units per master case (400mm × 300mm × 250mm), with corner guards and edge protectors to resist compression damage. Shipping marks include PO number, size breakdown, and country of origin, with barcodes compliant with GS1-128 standards for warehouse scanning.
