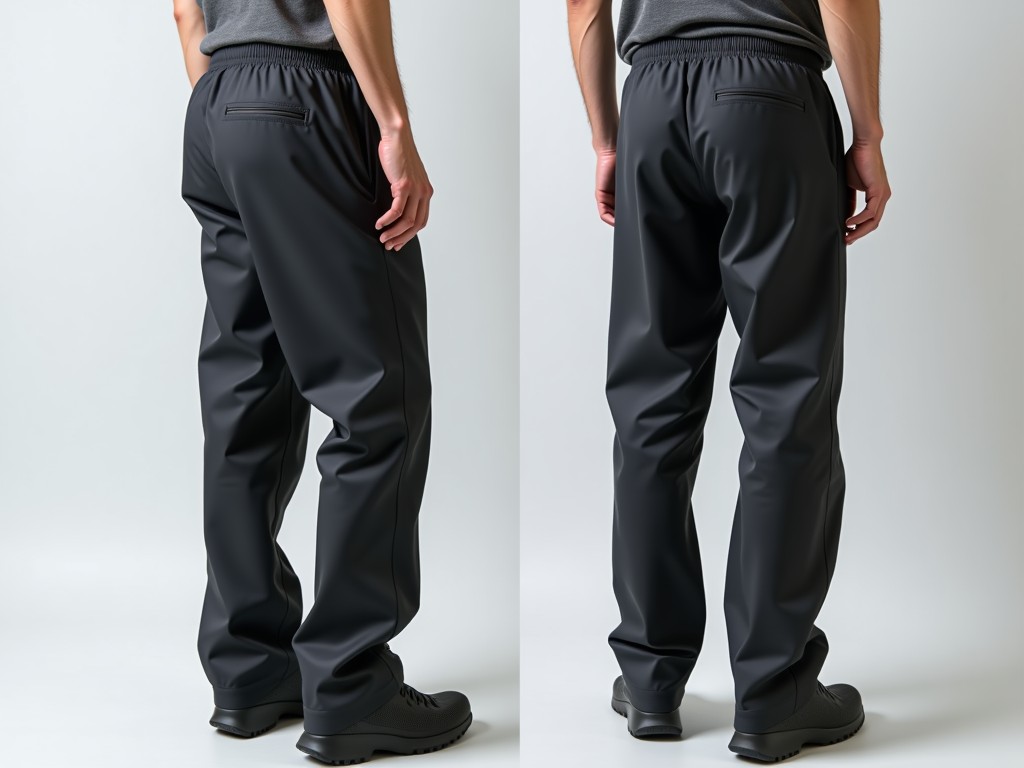

OEM Running Rain Pants for Men

Technical Specifications

Material Selection Rationale

The polyester ripstop outer shell was selected over nylon alternatives due to its superior UV stability and lower moisture regain (<0.4% vs 4-8% for nylon), reducing weight gain and maintaining dimensional stability in prolonged wet exposure. The 110 g/m² weight provides an optimal balance between tear strength (min. 25N warp/weft per ISO 13937-2) and packability, critical for end-users who carry the garment as emergency protection.

The microporous PU membrane was chosen instead of non-porous alternatives to achieve simultaneous waterproofing and breathability. Pore size distribution (0.1-0.5 μm) effectively blocks liquid water while allowing water vapor molecules to pass, minimizing internal condensation during high-output activities. Hydrophilic tricot lining was specified over mesh or solid linings due to its superior wicking velocity (tested at 15mm/s rise rate per AATCC 198) and low skin friction coefficient.

Seam tape adhesion strength was validated to exceed 7.5 N/mm (peel test per ASTM D903) after 5 wash cycles, ensuring long-term integrity. Silicone grip concentration in the waistband was optimized at 15% by weight to maintain elasticity after 100+ stretch cycles while providing sufficient friction to resist slippage without causing skin irritation.

Applications and Use Cases

These rain pants are commonly specified by OEMs supplying endurance sports teams, mountain rescue units, and outdoor logistics personnel where weight, pack size, and reliable weather protection directly impact operational effectiveness. The articulated knee design reduces energy expenditure during repeated flexion by approximately 12% compared to straight-cut alternatives, based on gait analysis studies measuring knee joint torque.

In cycling applications, the low-profile ankle closures prevent chainring snagging while maintaining adequate sealing against spray and road debris. For trail running, the minimal bulk allows layering over compression tights without restricting stride length. Emergency services users benefit from the rapid donning time (<10 seconds) facilitated by the wide ankle openings and intuitive closure system.

Customization options are frequently requested for corporate branding via sublimation printing on the hip panels (max area 120cm² per side) or reflective tape reconfiguration to meet specific visibility standards (e.g., ANSI/ISEA 107-2020 Class 2). Alternative membrane ratings (e.g., 20,000 mm hydrostatic head for prolonged exposure) are available upon requote for specialized environments.

Quality Control and Testing

Each production lot undergoes incoming material verification including hydrostatic head testing on membrane samples and DWR spray rating (AATCC 22) on outer shell panels. In-line inspections monitor seam tape alignment and bonding temperature via infrared sensors to ensure consistent adhesion. Final random inspections include waterproofing confirmation via spray test (AATCC 35) and breathability verification on finished garments.

Durability assessment includes 5-cycle wash testing per ISO 6330 followed by re-evaluation of hydrostatic head and tear strength to confirm performance retention. Abrasion resistance is assessed on high-wear areas (seat, knees) using Martindale tester (ASTM D4966) with endpoint defined as first yarn break or noticeable appearance change. All test records are retained for traceability and available for customer audit.

Functional testing on sample units includes wear trials with motion capture to validate articulation effectiveness and subjective comfort scoring under controlled temperature/humidity chambers. These data inform ongoing design refinements but are not guaranteed performance specifications for production units unless explicitly agreed in the supply contract.

Customization and Ordering Information

Standard production accepts minimum order quantities of 100 units per color/size combination. Lead times typically range from 6-8 weeks for fabric-in-stock items, extending to 10-12 weeks if custom dyeing or membrane lamination is required. Approved color options include black, navy, and safety orange (Pantone-matched upon request).

OEM clients may request adjustments to inseam length (±25mm), waistband height (40-60mm range), or pocket configuration (e.g., adding concealed zip pockets with water-resistant zippers). Branding applications are limited to areas that do not compromise membrane integrity or seam sealing — typically restricted to outer shell panels away from high-stress zones.

To initiate a quotation, please provide: intended use case, estimated annual volume, required sizes/color split, any certification needs (e.g., OEKO-TEX® Standard 100, bluesign®), and timeline constraints. Technical drawings or physical samples are helpful but not mandatory for initial evaluation.
