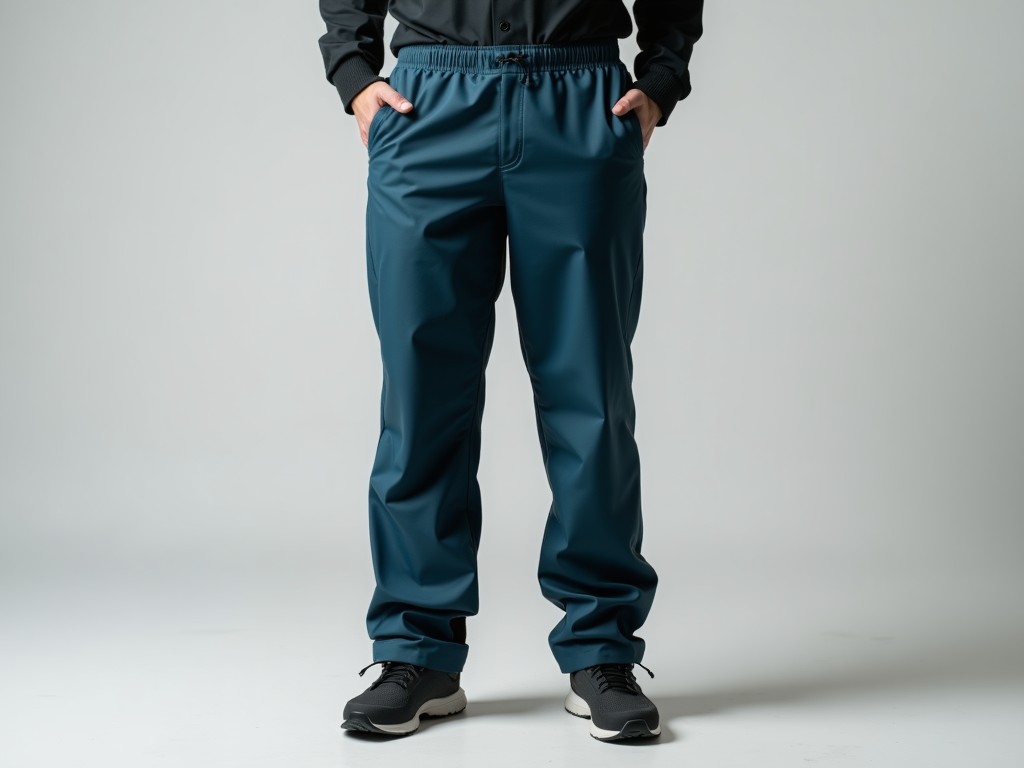

OEM Mens Waterproof Running Pants

OEM mens waterproof running pants are engineered for athletes and outdoor professionals who require consistent performance in variable weather. Unlike standard athletic wear, these pants integrate technical membranes and seam-sealing techniques to maintain breathability while blocking liquid water penetration. The design prioritizes mobility without compromising environmental protection, making them suitable for endurance training, trail running, and field operations in damp or rainy conditions.

Technical Construction and Material Performance

The pants utilize a three-layer laminate system: an outer face fabric treated with durable water repellent (DWR), a microporous polyurethane (PU) membrane, and an inner tricot liner for skin comfort. The membrane provides a hydrostatic head rating of 10,000 mm, resisting moderate rain and snowmelt while allowing moisture vapor transmission at 15,000 g/m²/24h. Seams are fully taped with 20mm-wide polyurethane tape applied via heat bonding to prevent leakage at stitch points, a critical failure zone in lesser garments.

Face fabric options include 100% nylon ripstop (70D) for abrasion resistance or recycled polyester (150D) for reduced environmental impact. Both substrates undergo plasma treatment to enhance DWR adhesion, maintaining >80% water repellency after 20 wash cycles per AATCC 22 testing. The inner liner uses brushed polyester to minimize chafing during prolonged motion, with a coefficient of friction below 0.3 against skin under dynamic load.

Ergonomic Design for Athletic Motion

Patterning follows a articulated knee design with 3D gusseted construction, allowing unrestricted flexion up to 130 degrees without fabric strain. The waistband features a 40mm elastic core with silicone grip strips to prevent slippage during vertical movement, adjustable via internal drawcord with barrel locks. Leg openings incorporate 50mm wide silicone-printed grippers to maintain cuff position over footwear, eliminating ride-up during stride cycles.

Ventilation is managed through laser-perforated zones at the posterior thigh and calf, covering 12% of surface area with 0.8mm diameter holes spaced 6mm apart. These apertures enhance convective cooling without compromising waterproof integrity, validated by spray testing per ISO 811. Reflective elements use 3M Scotchlite™ reflective tape applied via heat transfer, providing 300 lux visibility at 30m under low-light conditions.

Customization Options for OEM Integration

OEM clients can specify membrane performance tiers ranging from 8,000 mm to 20,000 mm hydrostatic head based on end-use climate demands. Face fabric denier, color, and DWR chemistry (C6 or PFAS-free) are adjustable per brand requirements. Seam tape width and application method (ultrasonic vs. heat-activated) can be modified to balance weight, flexibility, and sealing durability for specific activity profiles.

Additional customization includes pocket configuration (zippered, mesh-lined, or omitted), internal media routing ports with strain relief, and adjustable hem systems using bungee cords or Velcro tabs. Branding elements such as logos, trim colors, and reflective patterning can be integrated via sublimation, screen printing, or heat transfer without compromising membrane continuity. All modifications undergo protoype validation for waterproof integrity and mobility retention.

Quality Control and Manufacturing Consistency

Production follows ISO 9001:2015 quality management protocols with in-line inspection at cutting, sewing, taping, and final assembly stages. Each batch undergoes hydrostatic head testing on three random specimens per 1,000 units, with acceptance criteria set at ±10% of target rating. Seam peel strength is measured via ASTM D882, requiring minimum 15N/20mm width to ensure long-term adhesion under flexural stress.

DWR performance is evaluated using AATCC 22 spray rating after 5 and 20 wash cycles, with rejection if score falls below 80. Dimensional stability is verified via ISO 6330, limiting shrinkage to <3% in warp and weft after 5 home launderings. Final inspection includes 100% visual check for tape completeness, thread tension, and label placement, with functional testing of zippers, drawcords, and reflective elements before packaging.

Applications in End-Use Environments

These pants are specified for high-intensity outdoor activities where weather protection must not impede thermoregulation or motion efficiency. In trail running, they prevent hypothermia risk during sudden alpine storms while allowing sweat vapor escape to avoid overheating. For military or reconnaissance units, they provide reliable precipitation defense during prolonged field operations without the bulk of traditional rain gear, supporting agility in wet terrain.

Urban commuters and cycling enthusiasts benefit from the slim profile that layers under work attire while blocking road spray and drizzle. In adventure racing or obstacle course events, the abrasion-resistant face fabric withstands brush, rock, and mud exposure without delamination. The product is also adapted for canine handlers and outdoor instructors who require durable, weather-resistant apparel for extended periods in variable conditions.

Technical values represent typical performance under standard lab conditions (23°C, 50% RH). Actual field performance may vary based on exposure duration, temperature extremes, and mechanical abrasion. Custom specifications require engineering review to ensure compatibility between membrane selection, seam treatment, and intended use case. Clients receive material data sheets and test reports upon request for validation purposes.

To discuss specific requirements for your OEM application, including material selection, performance tuning, or prototype development, please contact our engineering team. We provide detailed feasibility assessments, sample lead times, and volume pricing based on your technical specifications and annual quantity forecasts.
