Mens Waterproof Raincoat With Hood

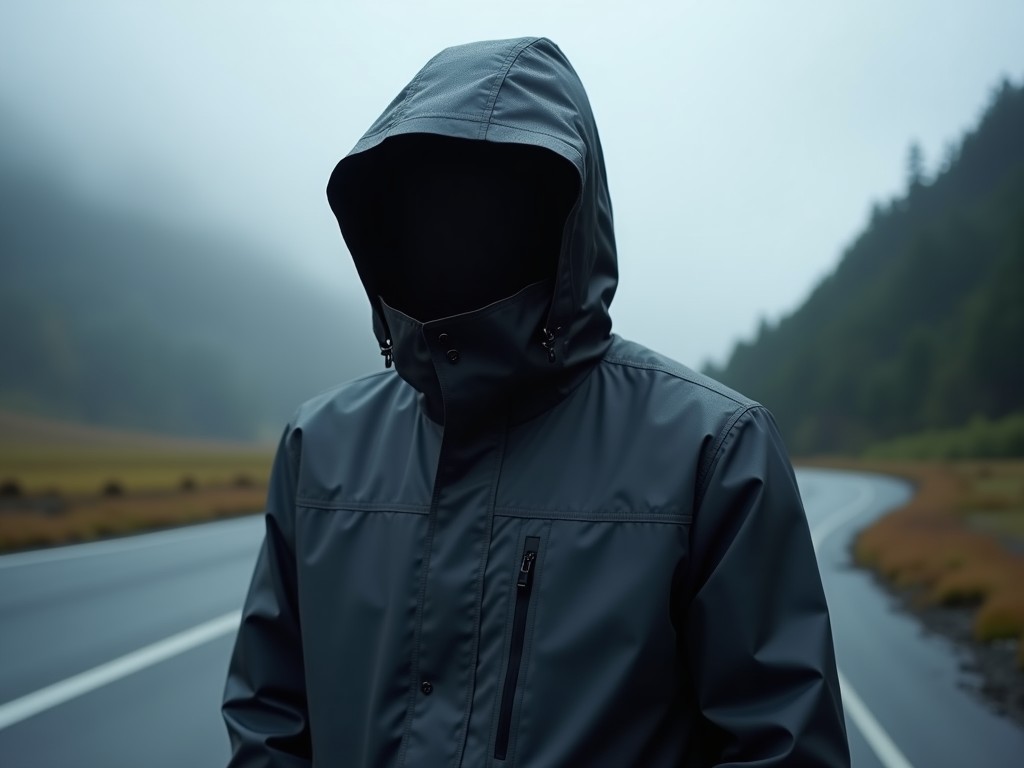

Mens Waterproof Raincoat with Hood
This raincoat is engineered for sustained exposure to wet industrial environments where worker protection and operational continuity are critical. The design integrates a fully taped seam construction with a breathable membrane system to manage moisture vapor transmission while maintaining a hydrostatic head rating of 10,000 mm. The hood features an adjustable drawcord system and reinforced peak to ensure visibility and seal integrity during high-wind conditions.
Outer shell material consists of a 3-layer laminated polyester fabric with a polyurethane coating, providing abrasion resistance exceeding 20,000 cycles under Martindale testing. The interior lining incorporates a moisture-wicking grid fleece to prevent condensation buildup against the skin during prolonged wear. All zippers are coated with a hydrophilic finish and protected by storm flaps sealed with ultrasonic welds to eliminate needle-hole leakage points.
Sizing follows ANSI/ISEA 101-2016 specifications for industrial outerwear, with chest measurements ranging from 96 cm to 140 cm in 4 cm increments. Sleeve length is proportionally scaled to maintain cuff coverage at 90° arm elevation, a critical factor for overhead work common in utility and maintenance operations. The coat includes two internal chest pockets with water-resistant zippers and two external hand-warmer pockets angled to minimize rain ingress during arm movement.
Technical Specifications
| Parameter | Value | Test Standard |
|---|---|---|
| Hydrostatic Head | 10,000 mm | ISO 811 |
| Moisture Vapor Transmission Rate | 8,000 g/m²/24h | ASTM E96 |
| Abrasion Resistance | >20,000 cycles | ASTM D4966 |
| Tear Strength (Warp) | 45 N | ASTM D2261 |
| Tear Strength (Weft) | 38 N | ASTM D2261 |
| Weight (Size L) | 680 g | Internal Measurement |
Material Composition and Construction
The outer layer utilizes a 150D polyester filament yarn woven in a 2x2 twill pattern, providing dimensional stability and resistance to snagging on rough surfaces. This is laminated to a microporous polyurethane membrane with a pore size of 0.2 μm, which blocks liquid water while allowing sweat vapor to escape. The inner layer is a 100% polyester grid fleece with a weight of 180 g/m², designed to create micro-channels that enhance capillary moisture transfer away from the body.
Seam sealing is performed using a 20 mm wide polyurethane tape applied via hot-air welding at 280°C, ensuring complete encapsulation of stitch holes. The tape exhibits a peel strength of 8.5 N/mm after 72 hours of hydrolysis resistance testing at 70°C and 95% relative humidity. All stress points, including shoulder yokes and pocket corners, are bar-tacked with bonded nylon thread rated for UV stability up to 500 hours of xenon arc exposure.
The hood is constructed with a three-panel design to conform to head movement without restricting peripheral vision. A laminated visor insert provides rigidity to the peak, preventing flapping in winds exceeding 25 m/s. Adjustment is facilitated by a single-hand toggle system located at the rear, allowing rapid tightening or loosening while wearing gloves.
Industrial Applications
This raincoat is specifically suited for environments where workers face intermittent or continuous exposure to precipitation while performing tasks requiring dexterity and mobility. In utility maintenance, it protects technicians working on overhead power lines or substation equipment during storm conditions, where maintaining grip on tools and visibility of safety signage is essential. The breathability prevents heat buildup during prolonged use, reducing the risk of heat stress in humid climates.
In transportation and logistics, the garment supports loading and unloading operations in open yards or docks where sudden rain showers can compromise cargo handling efficiency. The articulated sleeve design and gusseted underarms allow unrestricted reach when securing tarps or operating liftgate controls. Reflective trim options are available for low-visibility scenarios, complying with EN ISO 20471 Class 2 requirements when applied.
For municipal services such as waste collection or road maintenance, the coat’s resistance to abrasion from concrete edges and metal fixtures ensures longevity despite frequent contact with rough surfaces. The front storm flap overlaps by 50 mm to prevent water migration during bending or twisting motions, a common failure point in lesser-designed rainwear.
Customization Options
Color options include standard safety yellow (Pantone 803C), high-visibility orange (Pantone 1655C), and navy blue for corporate branding applications. Custom Pantone matching is available for orders exceeding 500 units, with laboratory dip approval required prior to production. Reflective tape can be applied in 50 mm or 100 mm widths according to ANSI/ISEA 107 specifications, with placement configurations tailored to client safety protocols.
Additional features such as internal ID badge loops, radio clips, or insulated liner systems can be integrated based on operational needs. The insulated liner option adds a 120 g/m² polyester fleece layer with a thermal resistance of 0.15 m²K/W, suitable for environments where temperatures regularly drop below 5°C. All modifications undergo prototype validation to ensure they do not compromise the garment’s certified waterproof performance.
Sizing can be adjusted for specific anthropometric datasets, including longer torso lengths or extended sleeve measurements for specialized roles. Custom pocket configurations, such as dual-layer tool pockets with drainage grommets, are available upon request. Minimum order quantities for modified designs typically start at 200 units, with lead times ranging from 6 to 10 weeks depending on complexity.
Quality Assurance and Testing
Each production lot undergoes hydrostatic head testing on three randomly selected units per 1,000 pieces, with acceptance criteria set at a minimum of 9,500 mm to account for potential variance. Seam integrity is verified using a dye penetration test under 20 kPa pressure for 5 minutes, with zero leakage points permitted. Colorfastness to washing is evaluated per ISO 105 C06, requiring a minimum rating of 4/5 after 30 cycles at 60°C.
Abrasion resistance is monitored through quarterly Martindale testing on fabric samples taken from the production line. Dimensional stability is assessed after five wash cycles at 40°C, with shrinkage limited to ≤2% in both warp and weft directions. All zippers are subjected to 1,000 cycles of operation followed by a spray test to confirm continued water resistance at the closure point.
Final inspection includes a functional check of all adjustable components, including hood drawcords, cuff velcro, and storm flap fasteners. Garments are folded using a standardized method to prevent creasing that could affect performance, then packaged in polyethylene bags with desiccant packs to control moisture during transit. Documentation includes a test report summary and care instructions specific to the laminated membrane system.
For technical inquiries, specification sheets, or to request a sample for evaluation, contact our industrial solutions team. We provide detailed material safety data sheets and can arrange third-party test verification upon request.
