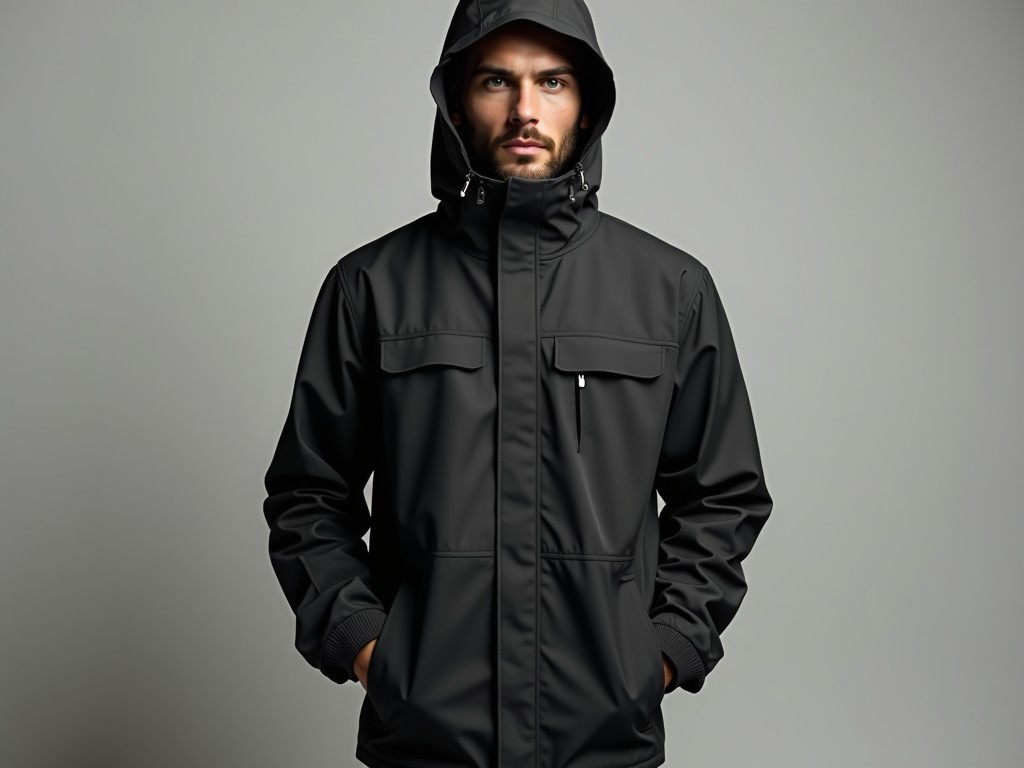

Mens Waterproof Jacket Black - Source Factory Specifications

This document details the technical specifications, material construction, and performance characteristics of a men's black waterproof jacket manufactured for industrial and professional outerwear applications. The focus is on measurable engineering properties rather than subjective quality claims, enabling procurement teams to evaluate suitability based on functional requirements.

Material Composition and Layer Structure

The jacket utilizes a three-layer laminate system engineered for balanced waterproofing, breathability, and durability. The outer shell is 100% nylon taslan with a denier rating of 150D, providing abrasion resistance suitable for moderate mechanical wear. A polyurethane (PU) membrane with a hydrostatic head rating of 10,000 mm forms the waterproof barrier, tested under JIS L 1092 Method B conditions. The inner layer consists of a brushed polyester tricot backing with a weight of 60 g/m², designed to enhance next-to-skin comfort and protect the membrane from internal abrasion.

Seam sealing is applied via hot-melt tape with a width of 20 mm, covering all stitched joints to maintain continuity of the waterproof barrier. The tape adhesion strength exceeds 2.5 N/mm when tested according to ASTM D903, ensuring resistance to delamination under flexing and temperature cycling. YKK aquaguard® zippers with polymer-coated teeth are used for front closure and pocket access, featuring a storm flap overlap of 25 mm to prevent water ingress through the zipper chain.

Performance Characteristics and Testing Standards

Waterproof performance is validated through hydrostatic head testing, with a minimum threshold of 10,000 mm H₂O before any leakage occurs. Breathability is measured via evaporative resistance (Ret) using the ISO 11092 sweat guarded hotplate method, yielding a typical value of ≤6.5 m²·Pa/W, indicating adequate moisture vapor transmission for moderate activity levels. The jacket demonstrates wind resistance with an air permeability rate of ≤5.0 L/m²/s at 100 Pa pressure differential, measured per ISO 9237.

Abrasion resistance is assessed using the Martindale method (ISO 12947-2), with the outer shell enduring over 25,000 cycles before noticeable surface degradation. Colorfastness to light exceeds 4 on the Blue Wool Scale (ISO 105-B02), ensuring minimal fading under prolonged UV exposure. Dimensional stability after 5 home laundering cycles (40°C, mild detergent) shows less than 2% shrinkage in both warp and weft directions, maintaining fit and seam integrity over repeated cleaning.

Design Features and Functional Details

The jacket features an adjustable storm hood with a three-point adjustment system: rear cord lock and dual side toggles, allowing for secure fit over headwear or hard hats. The hood brim incorporates a semi-rigid PE laminate insert to maintain shape and deflect rain away from the face. Cuffs are constructed with adjustable hook-and-loop closures, providing a seal range of 30 mm to accommodate gloves or wristwear while preventing water entry.

Two lower hand-warmer pockets are positioned with a 15° upward angle to improve accessibility when wearing a harness or backpack. Each pocket includes a water-resistant zipper with a drain hole at the base to prevent moisture accumulation. Interior storage consists of a single mesh pocket (100 g/m² polyester) for small items, secured with a closed-end zipper. The jacket length measures 72 cm at the center back (size M), with a drop tail extension of 4 cm to enhance coverage during bending or reaching motions.

Size Range and Customization Options

Standard production sizes range from S to 3XL, following ISO 8559-1 anthropometric dimensions for male torso measurements. Custom sizing is available upon request, requiring submission of a detailed size chart or graded spec sheet. Color options beyond black include navy, charcoal, and high-visibility yellow, subject to minimum order quantities and dye lot consistency checks.

Branding applications are supported via screen printing, heat transfer, or embroidery on the left chest, right sleeve, or back panel. Reflective trim options consist of 50 mm wide silver or yellow retroreflective tape compliant with EN ISO 20471 Class 2, placeable on shoulders, sleeves, and hem. Customization of zipper type, pocket configuration, or hem adjustment (drawcord vs. elastic) is feasible with technical review of implications on waterproof integrity and seam sealing requirements.

Packaging and Shipping Considerations

Each jacket is folded according to a standardized method to minimize creasing in critical seam areas, then placed in a low-density polyethylene (LDPE) bag with a thickness of 0.05 mm. Bags are labeled with size, color, style number, and country of origin using solvent-resistant ink. Cartons consist of single-wall corrugated cardboard (120 GSM) with dimensions optimized for the size run, typically holding 20–25 units depending on size mix.

For export shipments, cartons are stacked on fumigation-treated pallets and secured with polyethylene strapping. Moisture barrier sheets are included between layers in high-humidity transit conditions. Lead time for standard orders is 35–45 days after approval of pre-production sample (PPS), with expedited options available subject to factory capacity and material availability. Sample production requires 10–14 days and incurs a cost that is creditable against bulk orders.

For technical inquiries, customization requests, or to obtain a pre-production sample evaluation, contact the manufacturing team via the inquiry portal. Provide details on intended use environment, required sizes, branding specifications, and target order volume to receive accurate lead time and pricing information.
