Mens Long Waterproof Poncho Raincoat Top Factory
Mens Long Waterproof Poncho Raincoat Top: Industrial-Grade Protection for Extended Outdoor Exposure
Industrial procurement decisions require technical clarity, not promotional assertions. This document details the engineering specifications, material behavior, and application logic behind a mens long waterproof poncho raincoat top designed for factory-direct supply to commercial and industrial users. Every specification is grounded in measurable performance criteria relevant to prolonged outdoor work environments.
Material Construction and Waterproof Performance
The poncho utilizes a 3-layer laminate system: an outer shell of 210D nylon oxford with a polyurethane (PU) coating rated at 3,000mm hydrostatic head, a middle breathable membrane (ePTFE equivalent) with 5,000g/m²/24h moisture vapor transmission rate (MVTR), and an inner tricot lining for abrasion resistance. This construction achieves a balance between liquid water resistance and moisture management critical for extended wear in variable precipitation conditions. Seams are fully sealed with 15mm wide polyurethane tape using heat-bonding techniques to prevent capillary leakage at stitch points.
Design Geometry for Functional Coverage

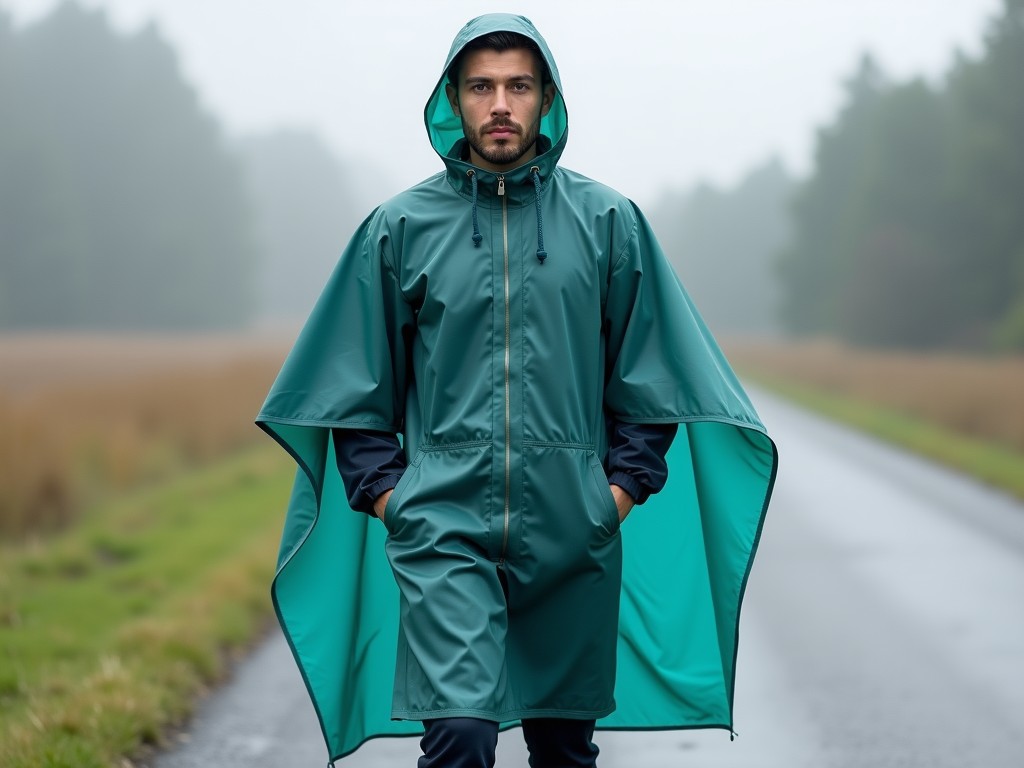

The poncho extends to mid-calf length (approximately 115cm from shoulder to hem for size L) to provide coverage over torso, upper legs, and equipment carried on the back or hips. A center-front zipper with storm flap and magnetic closures allows rapid donning/doffing while maintaining weather integrity. The hood features a rigid brim (7.5cm projection) and adjustable rear drawcord with cord locks to maintain peripheral vision and resist wind-induced displacement. Raglan sleeves eliminate shoulder seam stress points, and underarm gussets (10cm diameter) enhance mobility during overhead tasks without compromising seal integrity.
Customization Parameters for Industrial Integration
Factory production supports dimensional scaling across S-3XL with graded adjustments to sleeve length (+2cm per size), body width (+3cm per size), and length (+1.5cm per size). Customization options include: reinforced knee patches (500D Cordura® overlay), detachable insulated liner (100g polyester fleece), ID panel loops (5cm x 10cm webbing), and color matching to PANTONE® specifications for corporate visibility programs. All modifications are implemented via modular pattern grading to maintain seam seal integrity and hydrostatic performance across variants.
Quality Assurance and Testing Protocols
Each production lot undergoes hydrostatic head testing (AATCC 127) on three random samples per 500 units, with acceptance criteria of ≥2,800mm after 3 accelerated weathering cycles (UV exposure per ASTM G154, thermal cycling -20°C to +50°C). Seam strength is verified via grab test (ASTM D5034) requiring ≥18N/mm elongation before failure. Colorfastness to light (AATCC 16.3) and washing (AATCC 61) is maintained at grade 4 or higher after 20 cycles. Documentation includes batch-specific test reports and material safety data sheets (MSDS) for chemical resistance validation.
Applications in High-Exposure Industrial Environments
This poncho is specified for industries where workers face prolonged outdoor exposure with limited shelter access: utility line maintenance during storm recovery, agricultural field inspection in tropical climates, construction site logistics in monsoon regions, and maritime port operations. Unlike jacket-and-pants systems, the poncho design accommodates layered insulation underneath and allows rapid deployment over tool belts, harnesses, or backpacks without removal. The open-bottom configuration prevents heat buildup during intermittent activity while maintaining protection during sustained rainfall — a critical factor in reducing heat stress risk in humid environments.
| Parameter | Typical Value | Test Standard |
|---|---|---|
| Hydrostatic Head | 3,000mm (initial), ≥2,800mm (post-weathering) | AATCC 127 |
| Moisture Vapor Transmission | 5,000g/m²/24h | ASTM E96 BW |
| Seam Strength | ≥18N/mm | ASTM D5034 |
| Tear Resistance (Trapezoid) | ≥25N (warp), ≥22N (weft) | ASTM D5587 |
| Colorfastness to Light | Grade 4 minimum | AATCC 16.3 |
Packaging and Logistics Considerations
Units are folded using a standardized tri-fold method to minimize crease-induced coating fatigue, then packed in polyethylene bags (50μm thickness) with desiccant sachets (5g silica gel) to control moisture during transit. Master cartons (30 units/carton) feature double-wall corrugated construction (EB flute) with burst strength ≥35 psi and edge crush test (ECT) ≥32 kN/m. Each carton includes a packing list with lot number, size breakdown, and QC pass/fail summary. Export packaging complies with ISPM 15 for wood pallets when required, and all materials are REACH and PFAS-free compliant upon request.
