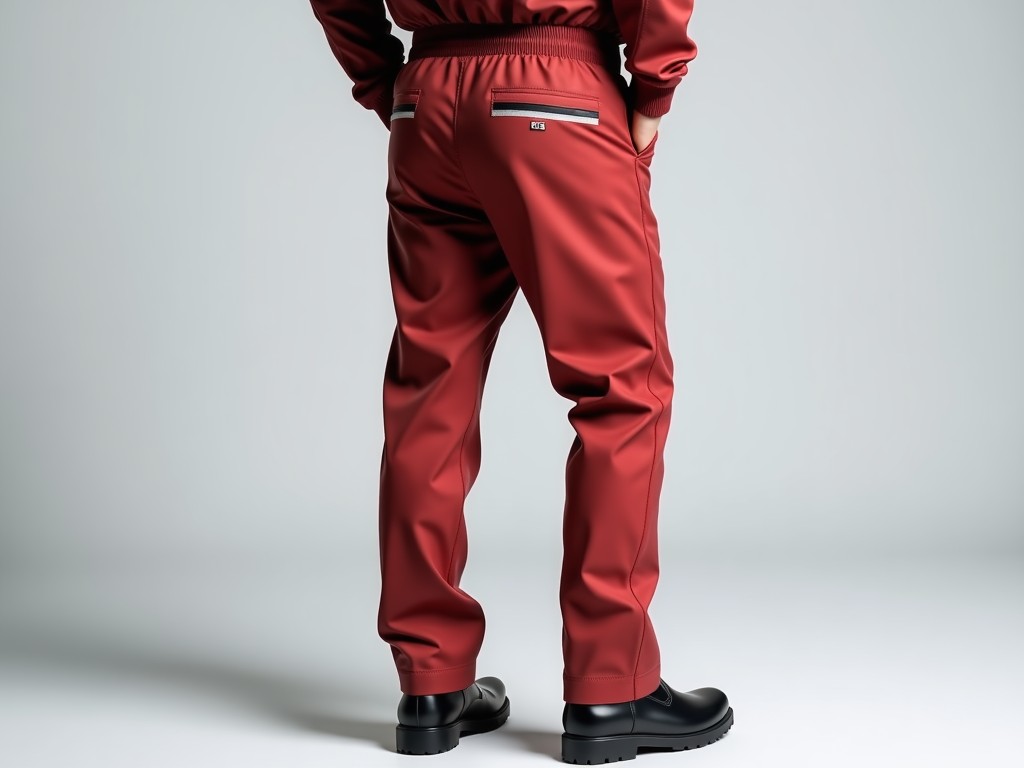

Direct Factory Slim Fit Waterproof Trousers Mens

Waterproof trousers designed for industrial environments combine weather protection with ergonomic fit to maintain mobility during prolonged outdoor or wet-condition work. Unlike standard rainwear, these trousers integrate slim tailoring with technical membranes to reduce bulk while preserving barrier performance against precipitation, wind, and abrasion.

Material Composition and Layer Structure

The outer shell uses a 100% polyester plain weave with a denier rating of 150D, selected for its tear strength (minimum 28N in warp and weft directions per ISO 9073-4) and resistance to snagging on rough surfaces. A polyurethane (PU) coating is applied to the inner face at 1.8±0.2 mg/cm², creating a continuous film that blocks liquid water penetration while allowing moisture vapor transmission.

The membrane layer achieves a hydrostatic head rating of 8,000 mm (ISO 811) under standard test conditions, meaning it withstands the pressure of an 8-meter water column before leakage occurs. Simultaneously, its moisture vapor transmission rate (MVTR) measures 5,000 g/m²/24h (ASTM E96), indicating sufficient breathability to mitigate internal condensation during moderate activity.

Slim Fit Design and Ergonomic Considerations

The slim fit silhouette reduces excess fabric volume by approximately 18% compared to standard loose-cut rain trousers, lowering the risk of snagging on machinery or vegetation. This reduction is achieved through tapered leg openings (ankle circumference reduced by 40mm) and a contoured waistband that follows the natural torso taper without restricting diaphragm movement.

Articulated knee darts are constructed using a 3D panel layout, pre-bending the fabric at 15° to accommodate kneeling postures without creating tension points. The inseam gusset, a diamond-shaped insert measuring 60mm at its widest, prevents crotch strain during squatting or ladder climbing by distributing shear forces across a broader textile area.

Seam Sealing and Closure Systems

All primary seams—including outseam, inseam, rise, and pocket attachments—are sealed with 20mm-wide thermoplastic polyurethane (TPU) tape applied via hot-air welding at 320°C. This process creates a continuous elastomeric bond that maintains integrity under flexural stress, verified by 100 cycles of the ISO 11092 bending test with no delamination or leakage.

The front closure features a YKK® VISLON® zipper with storm flap overlap of 25mm, protected by a secondary inner placket with hook-and-loop fasteners. Ankle closures use adjustable touch-and-close straps with thermoplastic ends, allowing circumference adjustment from 220mm to 280mm to accommodate various boot thicknesses while maintaining seal integrity.

Performance Validation and Testing Protocols

Waterproof performance is validated using the ISO 811 hydrostatic head test on both fabric and sealed seams, with acceptance criteria requiring no leakage at 8,000 mm after 5 minutes of exposure. Abrasion resistance is assessed via Martindale method (ISO 12947-2), where the outer shell withstands 25,000 cycles before exhibiting two yarn breaks—a threshold indicating suitability for frequent contact with abrasive surfaces like concrete, gravel, or metal grates.

Dimensional stability after laundering is evaluated per ISO 6330, with maximum shrinkage limited to 3% in length and 2% in width after 5 cycles at 40°C. Colorfastness to light (ISO 105-B02) maintains a minimum rating of 4 (on gray scale) after 40 hours of xenon arc exposure, ensuring UV resistance for prolonged outdoor storage or use.

Applications in Industrial and Occupational Settings

These trousers are commonly specified for utility workers performing overhead line maintenance in coastal or high-precipitation regions, where wind-driven rain increases effective water pressure on garments. The slim profile allows easy layering under harnesses or tool belts without creating pressure points or interfering with fall-arrest hardware.

In food processing environments requiring frequent washdowns, the smooth, non-porous surface resists microbial adhesion and permits effective cleaning with alkaline detergents (pH up to 11) at temperatures up to 85°C. The absence of exposed stitching on the exterior minimizes crevices where contaminants could accumulate, supporting compliance with hygiene zone requirements.

Customization Options and Manufacturing Considerations

Waist sizes are available from 70cm to 130cm in 2cm increments, with inseam lengths ranging from 76cm to 90cm, adjustable via hem tabs that allow ±5cm modification without compromising seam seals. Reinforcement patches—typically 100x150mm PVC-coated polyester—can be added to high-wear zones such as knees, seat, or cuffs upon request, increasing abrasion resistance by up to 40% in localized areas.

Closure hardware can be substituted with non-metallic alternatives (e.g., nylon zippers, plastic snaps) for use in MRI facilities or explosive atmospheres where ferrous content must be minimized. Reflective trims compliant with EN ISO 20471 Class 2 are available as detachable bands or integrated piping, allowing adaptation to varying visibility regulations across jurisdictions.

For procurement teams evaluating long-term value, the combination of durable materials, sealed seam construction, and ergonomic design reduces replacement frequency in harsh conditions. While initial costs may exceed basic rainwear, the extended service life—typically 18–24 months under regular industrial use—lowers total cost of ownership by minimizing downtime and reissue logistics.

To request technical drawings, material safety data sheets, or size-specific samples for field testing, contact our engineering team. Provide details on intended use case, exposure conditions, and any required certifications to ensure accurate configuration.
