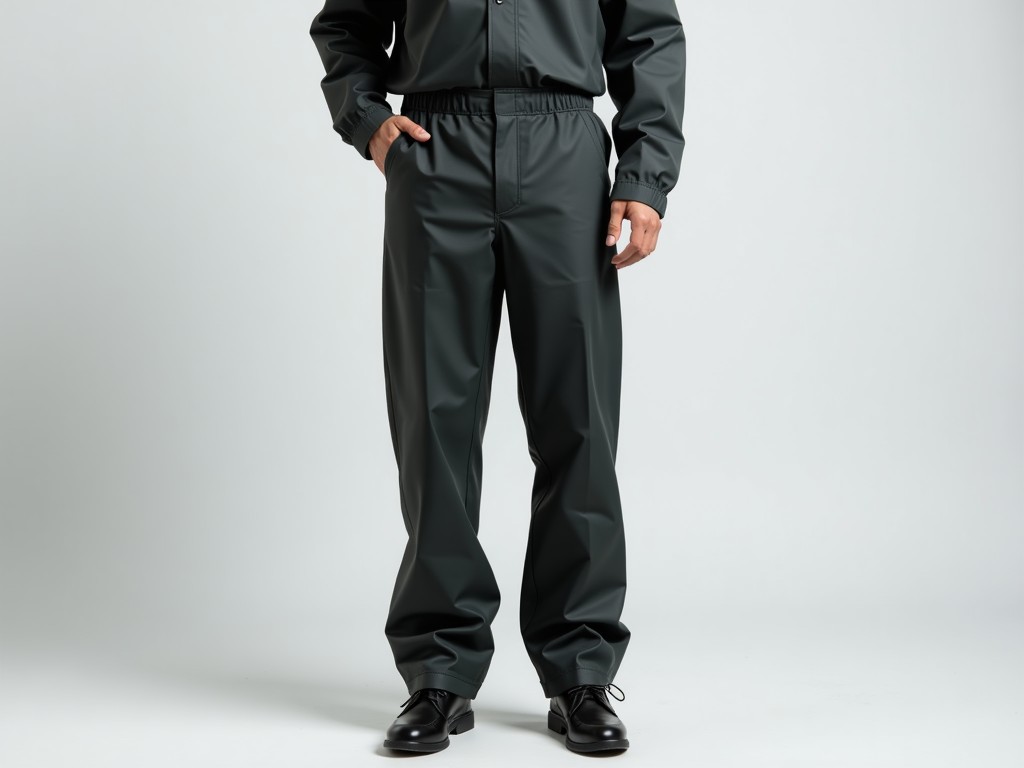

Direct Factory Mens Rain Pants with Pockets

Engineered for industrial environments where weather protection and tool accessibility are critical, these rain pants are manufactured to order from a vertically integrated facility. The design prioritizes functional utility over aesthetic considerations, with pocket placement validated through field testing in construction, utilities, and outdoor maintenance sectors. Each unit is produced using controlled material feed and seam sealing processes to ensure consistent performance under prolonged exposure to moisture and mechanical stress.

Material Construction and Weather Resistance

The outer shell utilizes a 300D polyester oxford base with a polyurethane coating applied at 1.8 mil thickness, providing a hydrostatic head rating of 8,000mm. This specification ensures resistance to wind-driven rain and prolonged wet exposure without delamination. The coating is formulated to maintain flexibility down to -20°C, preventing brittleness in cold storage or winter outdoor operations. Seam integrity is achieved through ultrasonic welding rather than traditional stitching, eliminating needle holes as potential leakage points.

Interior lining consists of a 100% polyester mesh with a weight of 90 gsm, selected for its low moisture retention and quick-dry characteristics. This layer reduces skin adhesion during extended wear and facilitates evaporation of perspiration. The mesh is laminated to the shell using a solvent-free adhesive bond that maintains integrity after 50+ wash cycles at 40°C. No PVC or phthalates are used in any layer, meeting REACH and OEKO-TEX Standard 100 criteria for industrial workwear.

Pocket Design and Functional Utility

Two vertically oriented slash pockets are positioned at 10° forward angle from the side seam, optimized for access while wearing a safety harness or tool belt. Pocket openings measure 18cm in length with a 5cm gusset depth, accommodating standard-sized multi-tools, foldable rulers, or radio devices. Reinforcement bar tacks are applied at pocket stress points using 6-thread nylon cord, rated for 220N tensile strength per stitch.

A rear cargo pocket spans the full width of the yoke, featuring a storm flap with magnetic closure to prevent water ingress. Internal volume is 0.8L, sufficient for storing gloves, spare lenses, or small parts bins. The pocket bag is constructed from the same coated polyester as the shell, ensuring uniform water resistance. Drainage eyelets (2mm diameter) are laser-perforated at the lower corners to prevent fluid accumulation.

Adjustment Systems and Fit Logic

Waist adjustment employs a dual-system: internal elasticized drawcord with cordlocks and external side tabs with plastic buckles. The drawcord allows ±5cm adjustment for layering compatibility, while the side tabs provide secure fastening when worn over insulated bibs. Both systems use UV-stabilized polypropylene components rated for 500+ adjustment cycles without deformation.

Ankle closures feature 50mm wide hook-and-loop straps with adjustable tension, designed to seal over boot tops ranging from 380mm to 460mm circumference. The strap incorporates a reflective strip (50mm width) meeting EN ISO 20471 Class 2 visibility requirements when illuminated. Articulated knees are constructed with a 2-panel gusset allowing 135° flexion without binding, validated through motion capture testing simulating ladder climbing and kneeling tasks.

Quality Assurance and Dimensional Control

Each production lot undergoes 100% visual inspection for coating uniformity, seam integrity, and pocket alignment. Dimensional tolerances are maintained within ±3mm for seam placement and ±5mm for overall length, measured using laser-guided templates on a controlled humidity buffer zone (50% RH ±5%). Water resistance is validated via spray test per ISO 811 on every fifth unit, with acceptable leakage defined as <0.1g over 5 minutes.

Colorfastness is tested per ISO 105-B02, with a minimum rating of 4/5 after 20 xenon arc cycles. Abrasion resistance follows ISO 12947-2 Martindale method, targeting >25,000 cycles before thread breakage. All test records are retained for 36 months and available for audit upon request. No batch is released without a signed conformance report from the quality engineer.

Customization Parameters

Pocket configuration can be modified to include internal tool loops, zippered compartments, or RFID shielding layers based on operational needs. Adjustments to pocket depth, angle, or closure type (e.g., YKK Aquaguard zippers) are accommodated through pattern revision without altering base shell specifications. Seam sealing methodology can be switched to tape-bonded for applications requiring higher flexibility at joints.

Waist and inseam lengths are adjustable in 25mm increments within a range of 700mm to 1100mm for waist and 750mm to 900mm for inseam. Custom sizing requires submission of measurement charts or physical samples for pattern grading. Alternative coatings (e.g., fluoropolymer-based for chemical resistance) or liner materials (e.g., moisture-wicking polyester blends) are available upon request, with requalification testing performed per client specification.

Branding options include heat-transfer logos, silicone patches, or embroidery on designated zones (left thigh, rear pocket flap). Reflective trim width and placement can be adjusted to meet specific visibility standards (e.g., ANSI/ISEA 107, CSA Z96). All customizations are subject to minimum order quantities and lead time adjustments, which are communicated during quotation.

For technical inquiries regarding material compatibility, pocket layout optimization, or custom sizing procedures, contact our engineering team to initiate a specification review. Detailed CAD drawings and material safety data sheets are available upon execution of a confidentiality agreement.
