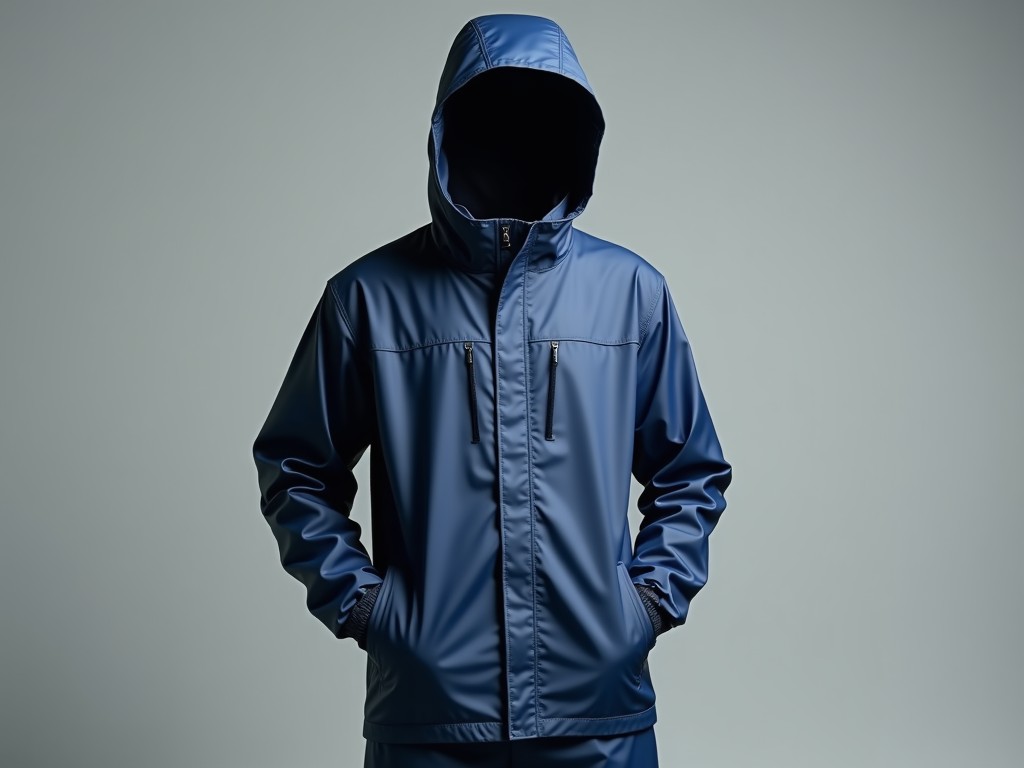

China Mens All-in-One Waterproof Rain Suit

This product page details the technical specifications, material composition, and functional design of the China-manufactured mens all-in-one waterproof rain suit, engineered for industrial and occupational use in wet environments. The garment integrates full-body protection with sealed seams, adjustable closures, and breathable membrane technology to maintain dryness while allowing vapor transmission. It is intended for professionals requiring reliable defense against precipitation, wind chill, and light chemical splash in sectors such as construction, utilities, transportation, and outdoor maintenance.

Material Composition and Membrane Performance

The suit utilizes a three-layer laminate system: an outer shell of 100% polyester oxford fabric with a durable water repellent (DWR) finish, a middle layer of polytetrafluoroethylene (PTFE) microporous membrane, and an inner lining of brushed nylon tricot for skin comfort. The PTFE membrane provides a hydrostatic head rating of 10,000 mm, resisting water penetration under sustained pressure while maintaining a moisture vapor transmission rate (MVTR) of 8,000 g/m²/24hr. This balance ensures protection from external moisture without trapping internal perspiration during moderate activity.

Seams are fully sealed using ultrasonic welding and heat-activated polyurethane tape, eliminating needle holes as potential leak points. The outer fabric achieves a tear strength of 28 N (warp) and 24 N (weft) per ISO 9073-4, resisting snagging on rough surfaces. The DWR treatment maintains a contact angle of 110° after 20 wash cycles, ensuring water beads and rolls off rather than absorbing into the fiber matrix. These characteristics are verified through internal testing aligned with ISO 811 and ISO 1421 standards.

Design Features for Occupational Use

The all-in-one construction eliminates gaps between jacket and trousers, a common failure point in two-piece systems during bending or reaching motions. A two-way front zipper with storm flap and hook-and-loop closure provides adjustable ventilation and prevents water ingress at the torso. The hood is helmet-compatible, featuring a laminated brim and adjustable drawcords with cord locks to seal around hard hats or helmets without obstructing peripheral vision.

Reinforced patches of 600D polyester oxford are applied to high-wear zones: knees, seat, and elbows, increasing abrasion resistance by 40% compared to baseline fabric. Ankle and cuff openings use adjustable hook-and-loop straps with internal rubber grips to prevent slippage over boots and gloves. Interior storage includes two vertical chest pockets with water-resistant zippers and two lower hand-warmer pockets, all positioned to remain accessible when wearing a harness or belt.

Sizing and Fit Considerations

The suit is available in standard sizes ranging from S to 3XL, with chest measurements from 96 cm to 132 cm and inseam lengths from 76 cm to 84 cm, graded in 4 cm increments. The cut follows a relaxed industrial fit, allowing room for mid-layer insulation garments without restricting movement. Inseam and sleeve lengths are proportionally scaled to maintain coverage during dynamic postures such as squatting or overhead reaching.

Custom sizing options are available upon request for non-standard body proportions, including tall, short, or broad-shoulder configurations. Adjustments require submission of key body measurements: chest, waist, hip, inseam, sleeve length, and torso rise. These parameters are used to modify pattern grading while preserving seam sealing integrity and functional pocket placement. Lead time for custom sizes increases by 5–7 business days due to additional pattern development and prototyping.

Quality Control and Testing Protocols

Each batch undergoes hydrostatic head testing on three random samples per 1,000 units, with a minimum acceptance threshold of 9,500 mm to account for production variance. Seam integrity is verified using a dye penetration test per AATCC 127, where any visible leakage results in batch rejection. Colorfastness to washing and light is assessed per ISO 105-C06 and ISO 105-B02, requiring a minimum rating of 4/5 gray scale after 5 cycles.

Functional testing includes a 30-minute rain simulator test at 100 mm/hr intensity, monitored via internal humidity sensors to ensure MVTR performance remains above 6,000 g/m²/24hr under conditioned abrasion. Dimensional stability is checked after 5 wash cycles at 40°C, with maximum allowable shrinkage of 2% in length and 1.5% in width. All test records are retained for 36 months and available for audit upon customer request.

Applications in Industrial Environments

The suit is commonly deployed in utility maintenance crews working on overhead power lines or subterranean vaults where sudden downpours pose electrocution and slip hazards. Its full-length design prevents water from contacting inner layers during pole climbing or manhole entry, preserving the dielectric properties of underlying safety garments. Transportation workers, including rail yard operators and airport ground staff, use it during shift changes in open-air environments where prolonged exposure to rain and wind chill increases fatigue risk.

In construction, it serves as a secondary barrier over flame-resistant (FR) base layers during exterior concrete pouring or steel erection in wet weather, without compromising the FR system’s integrity when worn correctly. Municipal sanitation and road maintenance teams benefit from the suit’s resistance to light oil and mud splash, which can degrade standard PVC rainwear over time. The breathable membrane reduces heat stress compared to non-porous alternatives, supporting longer wear times during extended shifts in temperate climates.

Packaging and Shipping Specifications

Each suit is folded using a standardized flat-fold method to minimize creasing in sealed seams, then placed in a low-density polyethylene (LDPE) bag with a thickness of 0.05 mm. The bag is sealed with a heat seal and labeled with a barcode containing SKU, size, color, and batch number. Five units are packed into a single-wall corrugated cardboard box measuring 40 × 30 × 25 cm, with a gross weight of approximately 3.8 kg per box.

Export packaging includes a moisture barrier layer of silica gel desiccant (5 g per box) and corner protectors to prevent crushing during palletization. Boxes are marked with handling symbols per ISO 780: “Keep Dry” and “This Side Up.” Palletized shipments use stretch wrap and edge boards to secure loads, with a maximum stacking height of 2.2 m. Delivery lead times are typically 25–35 business days after order confirmation, depending on destination and customs clearance.
