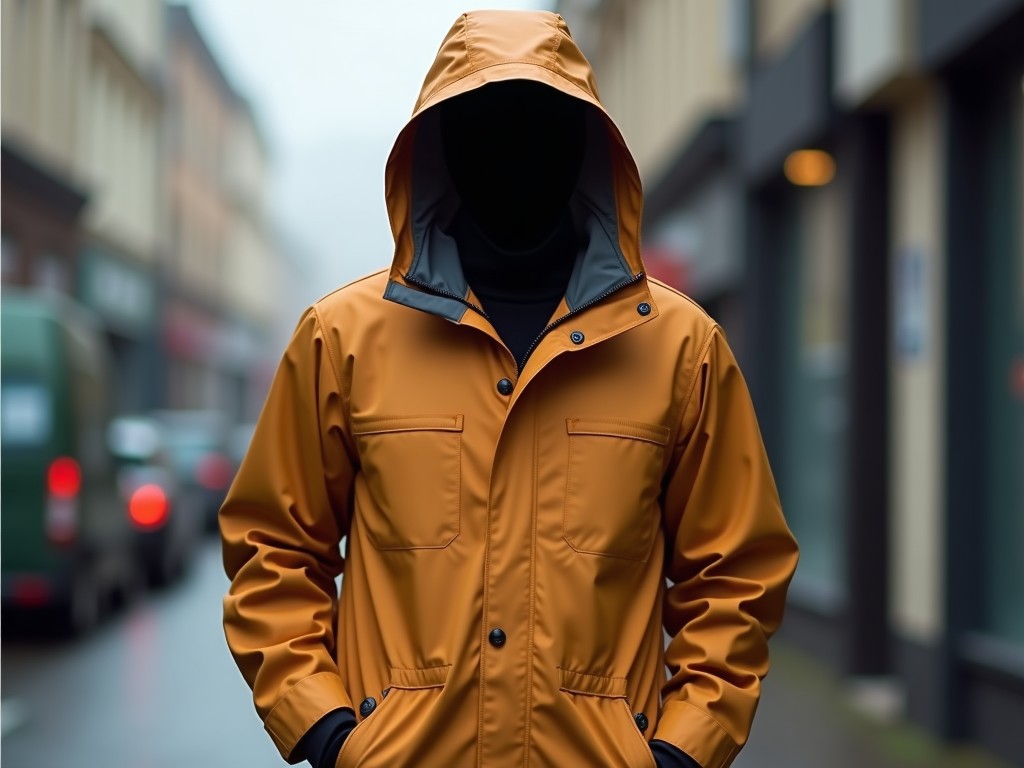

Brown Rain Jacket for Men – Industrial Factory Production

Material Composition and Waterproofing Performance

The outer shell is constructed from 100% polyester fabric with a polyurethane (PU) coating applied to the reverse side, providing a hydrostatic head rating of 5,000 mm under standard test conditions (JIS L 1092). This level of resistance prevents water penetration during prolonged exposure to moderate rainfall while maintaining breathability through micro-porous film technology. The coating weight is precisely controlled at 180 g/m² to balance durability and flexibility, avoiding stiffness that could restrict movement in active work environments.

Seams are sealed using thermoplastic polyurethane tape applied via heat bonding at 140–160°C, ensuring joint integrity matches the fabric’s waterproof rating. Tape width is 20 mm, centered over stitched seams, with adhesion strength tested to exceed 8 N/cm after 5 wash cycles at 40°C. This method eliminates needle holes as potential leakage points, a critical factor in maintaining consistent performance over the garment’s lifecycle.

Design Features for Industrial Use

The jacket includes a two-way front zipper with storm flap and hook-and-loop closure, allowing ventilation adjustment without compromising weather protection. Zipper teeth are molded nylon with a tensile strength of 45 N, selected for corrosion resistance in humid or coastal environments. The storm flap overlaps the zipper by 30 mm and is secured with two rows of stitching to prevent wind-driven water ingress.

Adjustable cuffs feature hook-and-loop tabs with 40 mm overlap, enabling secure fit over gloves or sleeves while minimizing water entry. The hem uses a bungee cord lock system with cord diameter of 4 mm and toggle retention force of 15 N, allowing one-handed adjustment. Both systems are reinforced with bar tack stitching at stress points to withstand repeated use.

Pockets are designed with drainage grommets (2 mm diameter) at the lower corners to prevent water accumulation. Hand pockets are angled at 15° for ergonomic access, with reinforced pocket bags made from 210D nylon taffeta to resist abrasion from tools or equipment. Interior includes a single mesh pocket (100 g/m² polyester) for ventilation and quick-drying storage of small items.

Sizing and Fit Specifications

The jacket follows a relaxed industrial fit, defined by a chest-to-waist differential of 10–12 cm across sizes M–XXXL, accommodating layering over fleece or thermal wear without restricting movement. Sleeve length is measured from center back neck to cuff, with a standard increment of 2.5 cm per size. Back length varies by size to maintain proportional coverage, ranging from 72 cm (M) to 80 cm (XXXL) at the high point shoulder.

Pattern grading uses a 2-point system for width and length adjustments, ensuring consistent fit progression across the size range. Shoulder slope is set at 12° to align with typical male posture in working positions, reducing shoulder strain during overhead reach. All measurements are taken flat on a relaxed garment, with tolerance of ±0.5 cm for linear dimensions and ±1.0 cm for circumferential measurements per ISO 13688:2013.

Colorfastness and Surface Properties

The brown color (Pantone 4625 C equivalent) is achieved through disperse dyeing at 130°C, resulting in a colorfastness to light rating of 4–5 (blue wool scale) and to washing of 4 (ISO 105-C06). Dye fixation is optimized to minimize bleed during initial washes, with residual formaldehyde content below 75 ppm, compliant with Oeko-Tex Standard 100 Class II requirements for skin contact.

Surface texture is characterized by a matte finish with a gloss unit of 8–12 (60° angle), reducing glare in outdoor work settings. The fabric undergoes a calendaring process to enhance surface smoothness, improving resistance to dirt adhesion and facilitating cleaning. Abrasion resistance is rated at 15,000 cycles (Martindale, 12 kPa pressure), suitable for moderate wear in industrial environments.

Manufacturing Considerations and Customization

Production occurs on modular sewing lines equipped with 300–400 RPM lockstitch machines, allowing efficient handling of coated fabrics without needle damage or seam puckering. Each jacket undergoes 12 quality control checkpoints, including seam strength testing (min. 15 N/cm), waterproof tape adhesion, and dimensional verification. Defect rate is maintained below 2.5% AQL for major defects under ISO 2859-1.

Customization options include adjustable hood integration (with visor and drawcord), reflective tape application (EN ISO 20471 Class 2 compliant), and internal lining alternatives such as fleece (200 g/m²) or mesh (100 g/m²). Logo placement is available via screen printing or heat transfer on chest, sleeve, or back, with ink adhesion tested to withstand 20 wash cycles. Minimum order quantity for customized variants is 300 units.

Lead time for standard production is 25–35 days after sample approval, depending on fabric availability and order complexity. Export packaging uses 5-layer corrugated cartons (150 g/m² liner, 100 g/m² medium) with dimensions optimized for palletization (1.2m × 1.0m). Internal protection includes polyethylene bags (0.05 mm thickness) and silica gel desiccant units to control moisture during transit.

Applications in Industrial Sectors

This jacket is commonly specified in logistics and outdoor material handling where workers face intermittent rain and wind exposure during loading/unloading operations. The breathable membrane prevents overheating during physical exertion, while the storm flap and sealed seams maintain protection during prolonged outdoor tasks. Its dark brown color minimizes visible dirt accumulation compared to lighter shades, reducing perceived soiling in high-traffic environments.

In utility and municipal maintenance roles, the jacket’s resistance to splashes and light chemical exposure (e.g., diluted cleaning agents) makes it suitable for street cleaning, park maintenance, and light infrastructure inspection. The adjustable cuffs and hem allow compatibility with safety gear such as harnesses or tool belts without creating gaps in weather protection. Reflective trim options enhance visibility in low-light conditions common during early morning or evening shifts.

Agricultural and landscaping operations benefit from the jacket’s abrasion resistance when working near vegetation, fencing, or equipment. The drainage grommets in pockets prevent water retention when carrying damp tools or gloves, and the two-way zipper allows quick temperature regulation during variable activity levels. These functional details address specific pain points in outdoor workwear that generic rainwear often overlooks.

For technical inquiries, sample requests, or to discuss specific customization needs such as sizing adjustments, material alternatives, or branding integration, please contact our manufacturing team. We provide detailed spec sheets, test reports, and production timelines upon request to support informed procurement decisions.
