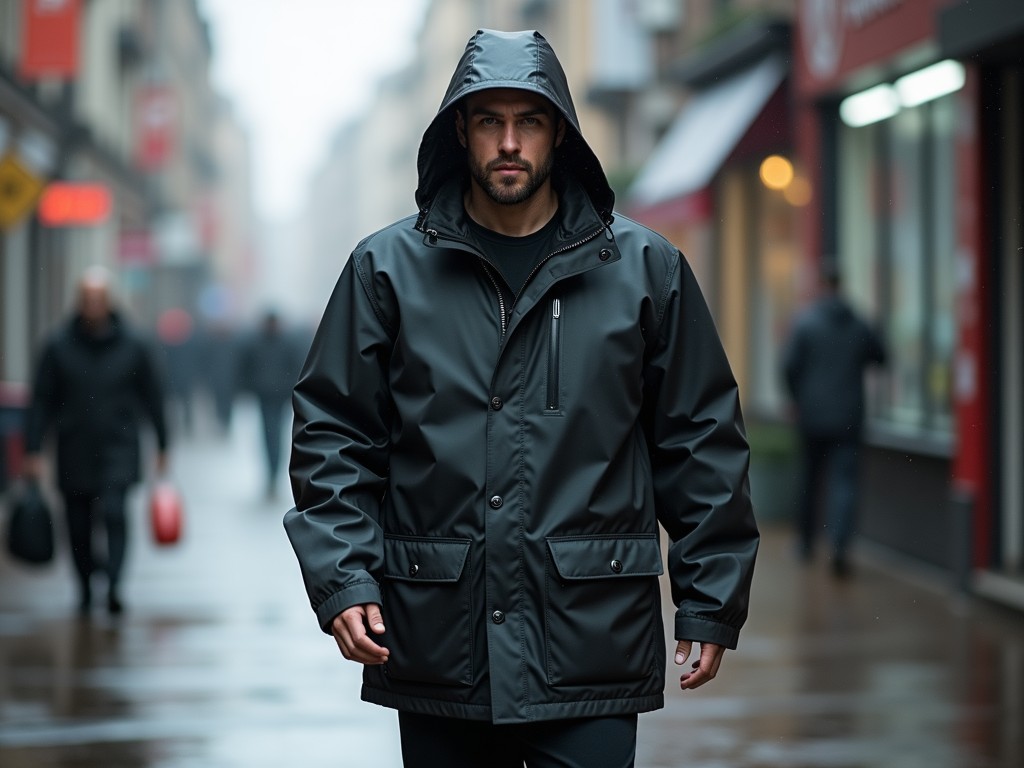

Industrial operations in wet environments require outerwear that maintains protection without restricting movement. Standard sizing often fails to accommodate larger frames, leading to compromised coverage or reduced mobility. This 5XL men's waterproof jacket addresses these fit challenges through proportional scaling and technical material selection.

Designed for consistent performance in prolonged exposure to rain, wind, and low temperatures, the jacket integrates a three-layer laminate system with sealed seams and adjustable closures. Each component is engineered to balance waterproof integrity, vapor permeability, and structural durability under repeated use.

The following sections detail the jacket’s construction, material properties, sealing methods, and functional design elements. Information is presented to support technical evaluation rather than promotional assertion.

The jacket utilizes a bonded three-layer laminate where each layer serves a distinct function. The outer layer consists of 100% nylon taslan with a denier rating of 420D, selected for abrasion resistance and dimensional stability. This layer receives a durable water repellent (DWR) finish based on C6 fluorocarbon technology, which reduces surface tension to cause water beading without blocking microscopic pores.

The middle layer is a microporous polytetrafluoroethylene (PTFE) membrane with a nominal pore size of 0.2 microns—small enough to block liquid water penetration (hydrostatic head rating ≥10,000 mm) while allowing water vapor transmission (Moisture Vapor Transmission Rate ≥8,000 g/m²/24h). This membrane is laminated directly to the underside of the outer fabric using heat-activated polyurethane adhesive.

The inner layer is a 100% polyester tricot mesh with a weight of 45 g/m², designed to protect the membrane from abrasion and improve wear comfort. Unlike solid linings, this mesh promotes micro-airflow and prevents direct skin contact with the laminate, reducing cling in humid conditions.

Water ingress commonly occurs at stitching points, necessitating comprehensive seam sealing. All seams are covered with 20mm-wide polyurethane tape applied via heat-bonding process at 140°C. The tape is compatible with the PTFE membrane and maintains flexibility after curing, preventing delamination during flexing.

The front closure features a YKK® VISLON® nylon coil zipper with storm flap overlap. The zipper teeth are molded from acetal polymer, resistant to corrosion and UV degradation. A secondary inner storm flap with hook-and-loop closure runs the full length, reducing wind-driven water entry at the zipper line.

Adjustable closures are present at the hood, cuffs, and hem. The hood uses a two-point drawcord system with barrel locks and cord stops. Cuffs incorporate dual-adjustment hook-and-loop straps allowing ±25mm range. The hem employs a single-side drawcord with elastic core and cord lock, enabling tension adjustment without removing the jacket.

Scaling to 5XL requires proportional adjustment of pattern pieces, not simple linear enlargement. Shoulder width increases by 22% relative to L size, sleeve length by 18%, and chest circumference by 30%, while maintaining armhole depth and torso taper to prevent binding. Back length is extended by 15% to ensure coverage during bending or reaching.

Articulated elbows are constructed with a 15-degree pre-bend using radial seam placement, reducing fabric strain during arm movement. Underarm gussets of 50mm diameter improve torsional flexibility and prevent seam stress when lifting or reaching overhead. These features are critical for tasks requiring prolonged upper-body motion.

Two chest pockets and two handwarmer pockets are included, all with zippered closures and storm flaps. Pocket bags are made from 100% polyester tricot to resist moisture retention. Internal drop-in pocket on left chest provides secure storage for radios or documentation, accessed via vertical zipper.

Values represent typical performance under standard test conditions. Actual performance may vary based on exposure duration, temperature cycling, and maintenance practices. Custom material formulations available upon request for specific environmental demands.

In offshore wind turbine maintenance, personnel face continuous spray and high humidity during tower ascents and nacelle work. The jacket’s breathability prevents internal moisture buildup from exertion, while sealed seams resist water penetration from horizontal rain and wave splash. The adjustable hood accommodates hard hats without compromising peripheral vision.

For wastewater treatment plant operators, exposure to aerosolized mist and periodic downpours requires reliable splash protection. The PTFE membrane resists chemical degradation from dilute sulfur compounds and chlorine-based disinfectants commonly present in ambient air. Easy-to-clean nylon outer surface allows routine decontamination with mild detergents.

In cold-storage logistics, workers transitioning between subzero warehouses and ambient loading docks experience condensation buildup on outerwear. The vapor permeability of the laminate minimizes internal condensation, reducing the risk of conductive heat loss. Adjustable cuffs and hem prevent cold air infiltration during prolonged standing or walking.

Each laminate roll undergoes incoming inspection for coating uniformity and bond strength using peel adhesion testing (ASTM D903). Minimum bond strength between layers is maintained at 1.8 N/mm to prevent delamination during flexing. Roll width and tension are monitored to ensure consistent cutting and alignment during pattern layout.

Finished garments receive hydrostatic head testing on three random samples per batch (minimum 100 units). Seam seal integrity is verified via dye penetration test under 2 psi pressure for 5 minutes. Zippers are cycle-tested to 5,000 repetitions with 50N lateral load to assess functional durability.

Dimensional stability is assessed after five wash cycles at 40°C per ISO 6330. Maximum allowable shrinkage is 2% in length and 1.5% in width. Colorfastness to washing and light is evaluated per ISO 105-B02 and ISO 105-C06, with minimum rating of 4/5 on the gray scale. All test records are retained for traceability.

For technical inquiries, custom sizing requests, or material specification documents, contact our engineering team. We provide detailed test reports, material safety data sheets, and sample kits upon request to support evaluation and qualification processes.
