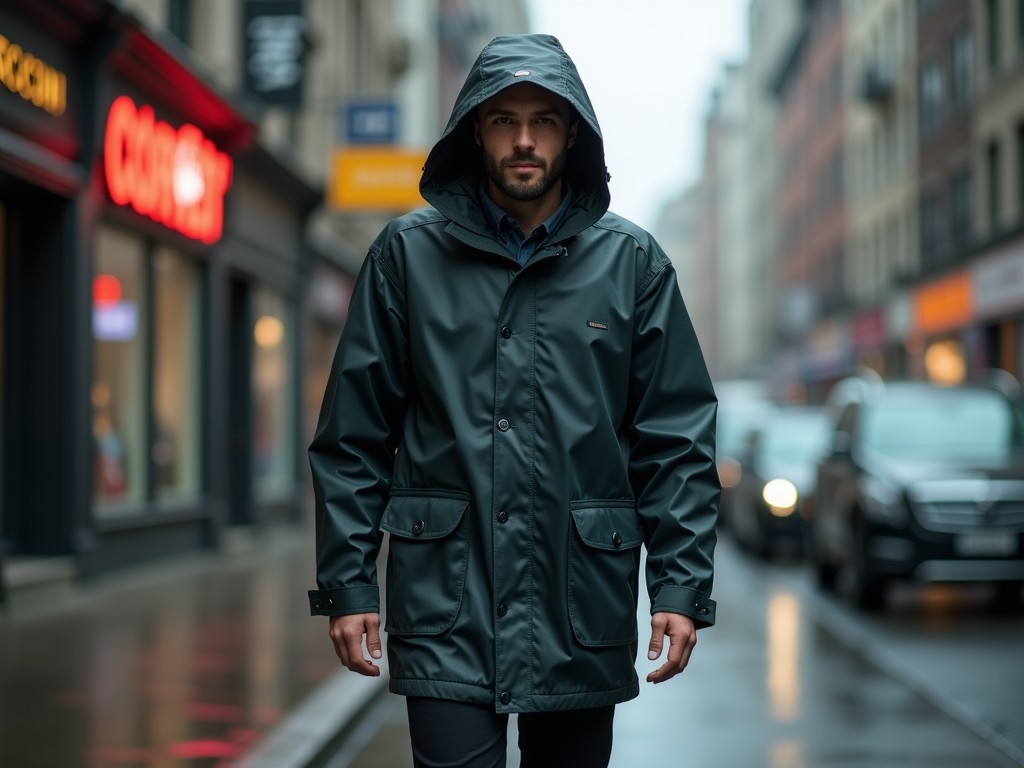

Engineered for prolonged exposure to wet and windy conditions, this 3XL men's waterproof jacket combines a 3-layer laminate system with sealed seam construction to deliver verified protection against precipitation while maintaining breathability for active use in industrial environments.

The outer shell utilizes a 150D nylon ripstop fabric with a polyurethane coating rated at 10,000mm hydrostatic head, providing resistance to moderate rainfall and snowmelt without compromising flexibility. Inner layers incorporate a microporous membrane that allows water vapor transmission at a rate of 8,000g/m²/24hr, reducing interior condensation during physical exertion.

All critical junctions—including shoulder yokes, sleeve attachments, and hem interfaces—are bonded with waterproof tape using heat-activated adhesive, eliminating needle holes as potential leakage points. This construction method exceeds standard stitching durability in abrasive settings where fabric stress concentrations occur.

The jacket’s performance derives from a tri-layer laminate where each component serves a distinct mechanical function. The outer layer resists surface abrasion and UV degradation, the middle layer blocks liquid water ingress, and the inner layer manages moisture transport while protecting the membrane from internal wear.

Outer shell: 100% nylon 6,6 ripstop with a duplex coating—outer side treated with DWR (durable water repellent) to reduce surface wetting, inner side laminated with 15µm PU film for hydrostatic resistance. This combination achieves a Taber abrasion rating of 500 cycles before visible fiber breakage, suitable for contact with rough surfaces or equipment.

Membrane: Microporous polyether polyurethane with pore size consistently below 0.5µm, blocking liquid water (20µm minimum droplet size) while permitting vapor diffusion. Long-term hydrolysis stability is maintained through ester-free polymer chains, preventing delamination after repeated wet/dry cycling in temperatures between -20°C and +40°C.

Inner lining: 100% polyester tricot with a brushed surface to enhance comfort against base layers and reduce friction-induced wear on the membrane. The lining adds no significant bulk but contributes to overall thermal retention by trapping stagnant air within its lofted structure.

Functional details are optimized for usability while wearing gloves, harnesses, or additional PPE. Adjustments are positioned for single-handed operation and do not rely on fine motor control, which is critical in cold or compromised dexterity scenarios.

Hood: Three-point adjustment system with elasticized rear drawcord and dual front toggles located outside the main zipper storm flap. The hood rotates with head movement and maintains peripheral vision when fastened. Brim incorporates a semi-rigid wire insert to deflect precipitation away from the face without obstructing downward sight.

Cuffs: Adjustable via hook-and-loop straps with thermoplastic polyurethane (TPU) tabs for grip in wet conditions. Inner cuff features a lycra-blend gusset that seals against skin or inner glove layers, minimizing water runoff into sleeves. Cuff opening accommodates gloves up to 18mm thickness without restriction.

Hem: Dual-adjustment system with internal drawcord and external toggle locks. Cord channels are lined with abrasion-resistant tape to prevent fraying during repeated tightening. Hem design allows for overlap with insulated layers or waders while maintaining a continuous seal against wind-driven rain.

Pockets: Two hand-warmer pockets with water-resistant zippers and storm flaps; one interior security pocket with welded seam construction. Pocket bags are made from 210D nylon to resist snagging on tools or equipment. Drainage eyelets are laser-cut and sealed with hydrophobic mesh to prevent water accumulation while allowing vapor escape.

The 3XL size is graded to accommodate larger torso circumferences and extended sleeve lengths while preserving ergonomic movement. Measurements are taken flat on a relaxed garment and doubled for circumference values.

Chest: 68cm (136cm circumference) measured 2.5cm below armhole. Waist: 64cm (128cm circumference) at natural waistline. Hip: 66cm (132cm circumference) at fullest point. Back length: 82cm from base of collar to hem along spine.

Sleeve length: 92cm from center back neck to cuff end. Armhole depth: 28cm to allow unrestricted shoulder rotation when wearing mid-layers. Bicep opening: 22cm (flat) to accommodate muscular arms or insulated liners without compression.

The cut follows a regular fit with slight taper at the waist to reduce wind flutter while maintaining room for base and mid-layers. Shoulder slope aligns with standard male anthropometrics for sizes 3XL and above, preventing pulling across the upper back during overhead reach.

Internal volume allows for layering up to 300g fleece or lightweight down jacket without restricting mobility. Users intending to wear insulated coveralls underneath should consider sizing up or verifying clearance with a physical sample.

Each production lot undergoes standardized verification to confirm compliance with design specifications. Testing follows internal protocols aligned with industry benchmarks for waterproof breathable garments, though no third-party certification is implied unless explicitly requested.

Hydrostatic head: Tested on a triplicate sample per lot using a hydrostatic pressure tester according to AATCC 127 methodology. Acceptance criterion: minimum 8,000mm after 3-minute exposure, with 10,000mm as target for new fabric. Samples are conditioned at 20°C/65% RH for 24 hours prior to testing.

Breathability: Measured via upright cup method (ASTM E96) Procedure B. Desired moisture vapor transmission rate (MVTR) is ≥6,000g/m²/24hr. Values below 4,000g/m²/24hr trigger material investigation, as this indicates potential membrane fouling or laminate degradation.

Seam integrity: All taped seams are visually inspected under 2x magnification and subjected to a water spray test (AATCC 35) for 5 minutes. No visible leakage is permitted. Peel adhesion of tape to substrate is measured periodically; values below 1.8N/mm require process adjustment.

Abrasion resistance: Conducted on high-wear areas (elbows, shoulders, seat) using Martindale tester. Endpoint is defined as two yarn breaks or noticeable thinning. Minimum acceptable: 15,000 cycles for outer shell fabric.

This jacket is selected by professionals requiring reliable precipitation protection during extended outdoor operations where stopping work due to weather is not feasible. Its design prioritizes sustained wear over intermittent use, making it suitable for environments with continuous exposure to damp conditions.

In utility maintenance, workers performing line inspections, meter readings, or substation checks in rainy climates benefit from the jacket’s ability to prevent saturation of inner layers, which reduces conductive risk and maintains dexterity. The hood’s compatibility with hard hats and hearing protection is verified through wear trials.

Transportation and logistics personnel involved in loading/unloading operations at open depots or rail yards use the jacket to stay dry during prolonged exposure to drizzle or mist. The adjustable cuffs prevent water ingress when handling wet cargo or operating in freezing rain where gloves are essential.

Infrastructure surveyors and geotechnical technicians working in coastal or high-rainfall regions rely on the breathability factor to avoid overheating during prolonged walking or climbing. The jacket’s length provides adequate coverage when bending or kneeling on wet surfaces without riding up excessively.

Waste management and sanitation crews operating early morning or evening shifts in variable weather appreciate the quick-drying properties of the face fabric and the ease of cleaning surface mud or splatter with a damp wipe. Reflective trim options are available upon request for low-visibility conditions.

While the base configuration meets common industrial requirements, certain attributes can be adjusted to align with specific operational needs or branding guidelines. Modifications are subject to minimum order quantities and may affect lead times.

• Fabric color: Available in standard navy, black, and gray; custom Pantone matching available for orders exceeding 200 units.
• Reflective trim: 50mm wide silver or yellow reflective tape can be applied to shoulders, sleeves, and back for enhanced visibility in low-light conditions.
• Pocket configuration: Additional internal mesh pockets or external tool loops can be added based on user workflow analysis.
• Branding: Left chest embroidery or heat-transfer logo application available; artwork must be provided in vector format.
• Packaging: Individual polybag with cardboard hanger or bulk packing in moisture-resistant cartons for industrial laundering contracts.

Dimensional adjustments to sleeve length, torso height, or hem sweep are possible upon submission of a detailed size chart or physical sample. Alterations to the core laminate structure (e.g., increased hydrostatic head) require material revalidation and are treated as engineered solutions.

For technical inquiries, sample requests, or quotation details regarding the 3XL men's waterproof jacket, please contact our engineering team. Provide your intended use case, environmental conditions, and any required compliance standards to ensure accurate configuration.
