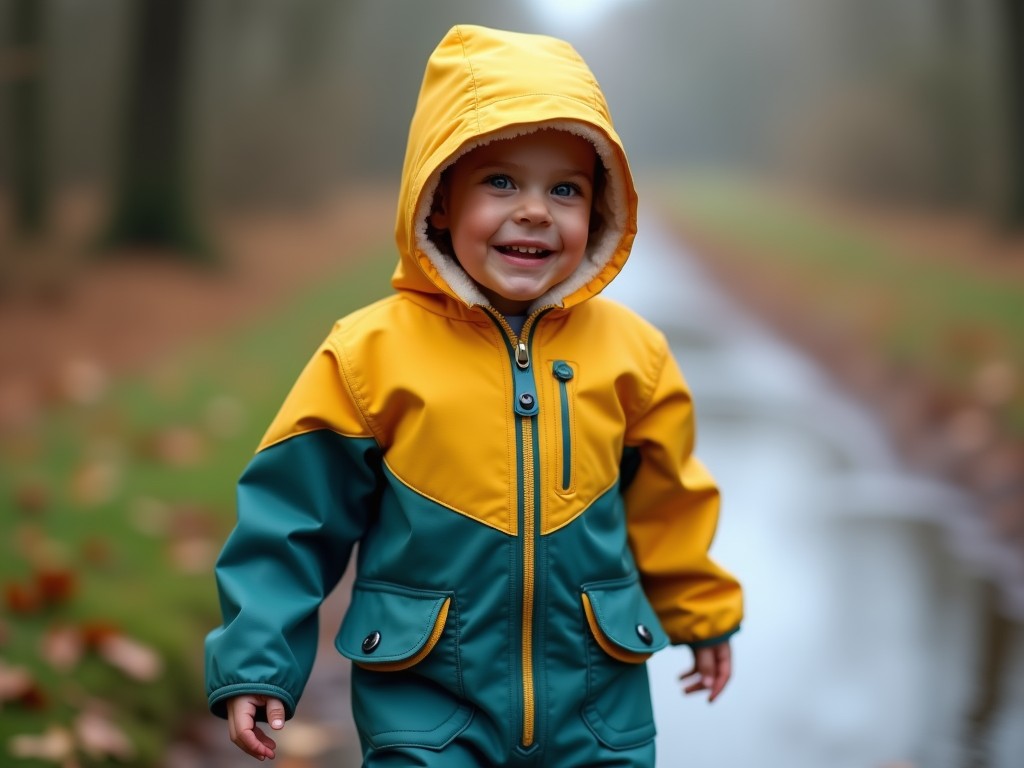

Children's Fleece Lined Puddle Suit

A children's fleece lined puddle suit is a one-piece outerwear garment designed for wet and cold weather protection, combining a waterproof exterior shell with an internal fleece lining for thermal insulation. Unlike standard rain suits that rely solely on shell materials, this construction integrates passive heat retention directly into the garment structure, reducing the need for multiple layers while maintaining freedom of movement essential for active play in puddles, snow, or muddy environments.

Material Composition and Layer Integration

The outer shell typically uses a polyurethane-coated polyester or nylon fabric with a hydrostatic head rating of 5,000mm to 10,000mm, providing resistance to prolonged water penetration while allowing vapor transmission to prevent internal condensation buildup. Seams are fully taped with heat-activated polyurethane tape to eliminate leakage points at stitch lines, a critical detail often overlooked in lower-grade children's rainwear. The fleece lining consists of 100% polyester microfleece with a weight of 200gsm, chosen for its ability to trap air effectively while remaining lightweight and quick-drying if moisture penetrates the shell.

The bond between shell and lining is achieved through strategic stitching at key stress points (shoulders, elbows, knees) rather than full lamination, preserving the breathability of both layers while ensuring the lining does not shift during use. This method avoids the stiffness and reduced flexibility associated with fully bonded constructions, maintaining the suit's suitability for crawling, climbing, and running—movement patterns fundamental to early childhood development.

Design Features for Functionality and Safety

The suit features a storm flap over the front zipper, constructed with a double-layer design and magnetic closures at the top and bottom to prevent water ingress through the zipper teeth—a common failure point in wet conditions. Ankle and wrist cuffs are made from 3mm thick neoprene with a smooth-skin finish, providing a watertight seal that accommodates growth while resisting degradation from UV exposure and repeated stretching. Reflective trim is applied along the shoulders, back, and heels using 3M Scotchlite™ compliant material, offering 360-degree visibility in low-light conditions without adding bulk or stiffness.

An integrated hood is shaped to accommodate a helmet or hat underneath, with a wired brim that maintains its shape to shed rain away from the face. The hood attaches via snap buttons at the neckline, allowing removal when not needed to reduce overheating risk during transitional weather. Internal leg stirrups made from elasticated nylon webbing prevent the suit from riding up during movement, ensuring consistent coverage of the lower back and hips—areas prone to exposure during active play.

Performance Characteristics and Testing Parameters

Waterproof performance is validated using ISO 811 test methodology, with samples subjected to 10,000mm hydrostatic pressure for 5 minutes without leakage. Breathability is measured via ISO 11092 (RET value), targeting a result below 30 m²Pa/W to ensure comfort during sustained activity. Thermal insulation is evaluated using a heated manikin test per ASTM F1291, comparing the suit’s heat retention to a baseline clothing ensemble; typical results show a 2.5 to 3.0 clo value increase over the shell alone, equivalent to adding a mid-weight fleece layer.

Durability is assessed through 20 cycles of accelerated weathering (UV exposure + temperature cycling) followed by abrasion testing per ASTM D3884, with the shell showing less than 10% loss in tensile strength and no delamination at the shell-lining interface. Colorfastness to light and washing is rated at minimum 4/5 on the grey scale after 20 wash cycles at 40°C, ensuring the suit retains visibility and appearance through repeated use.

Sizing and Fit Considerations for Growing Children

Sizes are based on height ranges rather than age, accommodating the variable growth rates in early childhood: 80-90cm (18-24 months), 90-100cm (2-3 years), 100-110cm (3-4 years), and 110-120cm (4-5 years). Each size includes a 5cm growth allowance in the torso and limbs, achieved through articulated knee and elbow gussets that expand with movement without creating excess bulk. The suit is designed to be worn over light indoor clothing (e.g., cotton leggings and long-sleeve top) but not over bulky mid-layers, which could compromise the fit of cuffs and hood.

Parents and caregivers should measure the child’s height and chest circumference while wearing typical indoor layers to select the correct size. A properly fitted suit allows 2-3cm of pinchable fabric at the chest and waist when the child is standing upright, ensuring room for movement without creating gaps at the neck, wrists, or ankles where water or cold air could enter. The suit should not restrict arm raise or leg lift beyond 90 degrees, a key indicator of appropriate mobility for play activities.

Comparison with Alternative Outerwear Solutions

Compared to separate rain pants and jacket combinations, the one-piece suit eliminates the risk of water entry at the waist interface—a frequent issue when children sit in puddles or snow. Unlike insulated snowsuits that prioritize warmth over water resistance, this suit maintains balanced performance: the shell prevents external moisture ingress while the fleece manages microclimate humidity, avoiding the overheating common in non-breathable insulated designs. Traditional cotton-based rain suits absorb water quickly, increasing weight and reducing thermal efficiency; the synthetic shell and lining here retain insulative properties even when wet.

For applications requiring enhanced durability (e.g., forest school settings), reinforced versions feature Cordura® nylon overlays on knees, seat, and elbows, increasing abrasion resistance by 300% while adding minimal weight. In milder climates, a lightweight variant uses a 150gsm fleece lining and 3,000mm hydrostatic head shell, reducing bulk for transitional seasons while maintaining core waterproofing and insulation principles.

Quality Control and Manufacturing Consistency

Each production batch undergoes 100% seam integrity testing using a vacuum chamber to detect micro-leaks in taped seams before final inspection. Fleece lining weight and thickness are verified per roll using a GSM tester and thickness gauge, with acceptance criteria set at ±5% of target values. Zippers are tested for 500 cycles of open-close operation under salt spray exposure to ensure corrosion resistance and smooth function in coastal or winter road-salt environments.

Final inspection includes a 3-point check: shell integrity (no holes, thin spots, or coating defects), seam tape adhesion (no peeling or bubbling), and functional verification of all closures (zippers, snaps, cuffs, stirrups). Random samples from each batch are subjected to a 30-minute shower test followed by a visual and tactile inspection for internal moisture accumulation—any detection of dampness beyond surface condensation triggers batch review.

Care Instructions and Longevity Factors

To maintain performance, the suit should be washed inside out in cold water (30°C max) using a mild liquid detergent without fabric softeners, which can clog the shell’s pores and reduce breathability. Tumble drying is discouraged; instead, line drying away from direct heat preserves the integrity of the seam tape and fleece pile. If machine drying is necessary, use a low-heat setting (<40°C) for no longer than 20 minutes, followed by air drying to complete the process.

Reproofing the outer shell with a fluorocarbon-free DWR (durable water repellent) spray is recommended after 10-15 wash cycles or when water no longer beads on the surface. This treatment restores surface tension without compromising the breathability of the membrane. Proper storage—hanging on a wide hanger in a cool, dry place—prevents creasing that could weaken the shell coating over time, significantly extending the garment’s usable life across multiple seasons or children.

For technical inquiries, custom sizing requests, or bulk order specifications, contact our product engineering team to discuss material options, branding integration, or packaging configurations suited to distribution or institutional procurement workflows.

Request detailed specifications or samples
